Vehicle Exploded View - APRILIA MINI RX 50 Entry 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

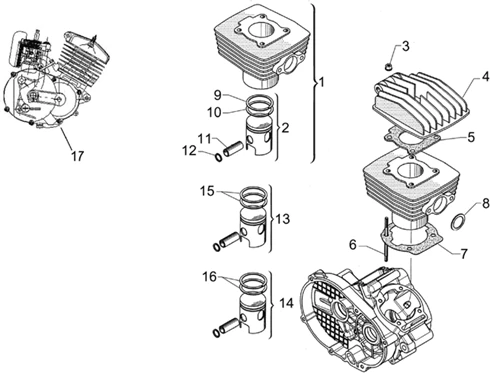

Moteur : 29.06 CULASSE - CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/298/Mini_RX_Entry_2003_29.06.PNG)
1 |
Cylindre av.piston |
||||||
|
2 |
Piston |
||||||
|
3 |
Écrou |
||||||
|
4 |
Culasse |
||||||
|
5 |
AP8350125 - GUARNIZIONE More informationQuantity required : 1 |
||||||
|
6 |
Vis sans tête |
||||||
|
7 |
Joint |
||||||
|
8 |
Joint |
||||||
|
9 |
Segment |
||||||
|
10 |
Segment |
||||||
|
11 |
SPINOITTO D |
||||||
|
12 |
AP8350069 - ANELLO More informationQuantity required : 2 |
||||||
|
13 |
Piston |
||||||
|
14 |
AP8350152 - PISTONE More informationQuantity required : 1 |
||||||
|
15 |
AP8350172 - SEGMENTI-SERIE More informationQuantity required : 1 |
||||||
|
16 |
Segments - série |
||||||
|
17 |
|
