Vehicle Exploded View - APRILIA AF1 FUTURA 125 1990-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

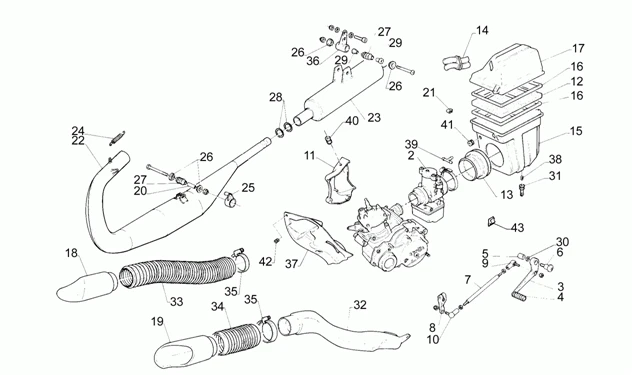

Chassis : 14 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/232/AF1_Futura_125_1990-1992_14.PNG)
2 |
CARBURATEUR |
||||||
|
2 |
CARBURATEUR |
||||||
|
2 |
CARBURATEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/0/4/img/45504.jpg)
3 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, TUONO 2000>2003, AF1 -AP8106013- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
4 |
GEARBOX SELECTOR RUBBER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA -AP8220189- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/9/img/46729.jpg)
5 |
AP8121147 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/6/img/71456.jpg)
6 |
BRAKE LEVER PIN "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 FUTURA -AP8121284- More informationQuantity required : 1 |
||||||
|
7 |
AP8121668 - TIGE RENVOI BO?TE DE VITESSES More informationQuantity required : 1 |
||||||
|
8 |
BIELLETTE SELECTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
9 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
10 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8110053 More informationQuantity required : 1 |
||||||
|
11 |
CARTER COUVRE PIGNON SDB |
||||||
|
11 |
CARTER COUVRE PIGNON SDB |
||||||
|
12 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P- More informationQuantity required : 1 |
||||||
|
12 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P- More informationQuantity required : 1 |
||||||
|
13 |
MANCHON CARBURATEUR |
||||||
|
14 |
AP8120532 - MANCHON FILTRE A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.jpg)
14 |
AP8120748 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
|
15 |
BASE BOITIER FILTRE |
||||||
|
15 |
BOITIER FILTRE A AIR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/4/7/img/48647.jpg)
16 |
AP8131121 - GRILLE FERMET.FILTRE; More informationQuantity required : 2 |
||||||
|
17 |
COUVERCLE |
||||||
|
17 |
AP8168042 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
18 |
TUBE DROIT |
||||||
|
19 |
TUBE GAUCHE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
20 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
21 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 5 |
||||||
|
22 |
POT ECHAPPEMENT |
||||||
|
22 |
POT ECHAPPEMENT |
||||||
|
22 |
POT ECHAPPEMENT PEINT |
||||||
|
23 |
SILENCIEUX |
||||||
|
23 |
SILENCIEUX EN ALU |
||||||
|
23 |
SILENCIEUX IN =8119312 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/4/img/46724.jpg)
24 |
EXHAUST SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, AF1 -AP8121091- More informationQuantity required : 2 |
||||||
|
25 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
26 |
AP8101284 - RONDELLE More informationQuantity required : 2 |
||||||
|
27 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
28 |
JOINT |
||||||
|
29 |
Silent bloc |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
30 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
|
31 |
Reniflard corps filtre |
||||||
|
32 |
TUBE AIR G. |
||||||
|
33 |
DURITE AIR (PL) |
||||||
|
34 |
MANCHE A AIR GCHE |
||||||
|
35 |
COLLIER |
||||||
|
36 |
SUPPORT SILENCIEUX |
||||||
|
37 |
Cache |
||||||
|
38 |
Filtre pour reniflard |
||||||
|
39 |
RACCORD |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
40 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
41 |
AP8120598 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
42 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
43 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 1 |
