Vehicle Exploded View - APRILIA AMICO 50 Amico LX Sport 1992-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

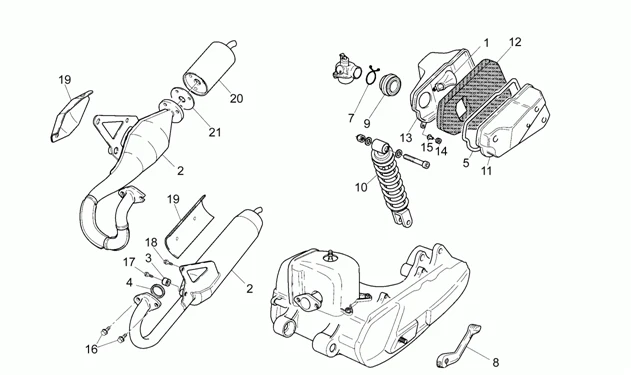

Chassis : 11 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/236/Amico_LX_Sport_1992-1993_11.PNG)
1 |
Manchon d'aspiration; |
||||||
|
2 |
SILENCIEUX AMICO |
||||||
|
2 |
POT ECHAPPEMENT COMPLET |
||||||
|
2 |
ECHAPPEMENT CATALITIQUE |
||||||
|
3 |
AP8220357 - SILENTBLOC POT VERT More informationQuantity required : 1 |
||||||
|
4 |
Joint echappement |
||||||
|
5 |
AP8220407 - JOINT COFFRE NOIR 7X8 More informationQuantity required : 1 |
||||||
|
7 |
Res. hélic. torsion |
||||||
|
8 |
AP8232629 - LEVIER ALLUMAGE; More informationQuantity required : 1 |
||||||
|
9 |
Manchon de carburateur |
||||||
|
10 |
AMORTISSEUR =8203407 |
||||||
|
11 |
Couvercle corps filtre; |
||||||
|
12 |
Filtre air |
||||||
|
13 |
Boitier filtre a air |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
14 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
15 |
AP8121795 - DOUILLE EN T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
16 |
AP8150521 - VITE TCEI M6X16 INOX More informationQuantity required : 1 |
||||||
|
17 |
VIS TE M 8 X 35 |
||||||
|
18 |
VIS TE M 8 X 20 |
||||||
|
19 |
PROTECTION POT ECHAPP |
||||||
|
19 |
PROTECTION SILENCIEUX SR |
||||||
|
20 |
SILENCIEUX SR 50 94 |
||||||
|
21 |
AP8201574 - JOINT POT D'ECHAPPEMENT; More informationQuantity required : 1 |
