Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

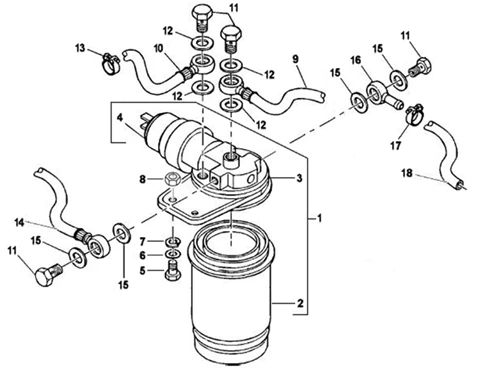

Parties plastiques-carrosseries : 02.42 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/325/Ape_Classic_400_2014-2015_02.42.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/3/8/1/img/120381.jpg)
2 |
DIESEL GAS-OIL FILTER "PIAGGIO GENUINE PART" APE, PORTER 1998>2005 -493290 More informationQuantity required : 1 |
||||||
|
3 |
DISPOSITIVO |
||||||
|
4 |
1R000297 - CORPS FILTRE DIÉSEL More informationQuantity required : 1 |
||||||
|
5 |
632247 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
6 |
016626 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
7 |
016410 - ANNEAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
8 |
020110 - ECROU More informationQuantity required : 2 |
||||||
|
9 |
|
||||||
|
10 |
|
||||||
|
11 |
612453 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/3/0/img/110130.jpg)
12 |
GASKET ON FUEL FILTER PIPE "PIAGGIO GENUINE PART" PIAGGIO APE, CALESSINO DIESEL -127927R More informationQuantity required : 4 |
||||||
|
13 |
632864 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
15 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/4/6/img/111246.jpg)
16 |
231018 - RACCORD More informationQuantity required : 1 |
||||||
|
17 |
632864 - COLLIER More informationQuantity required : 2 |
||||||
|
18 |
|
