Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

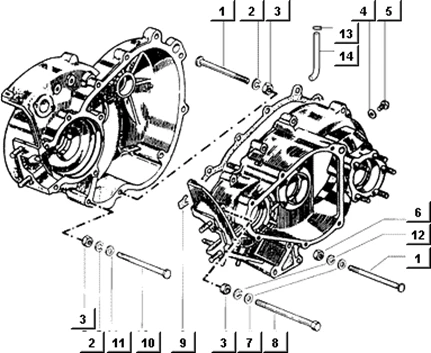

Moteur : T3 FIXATIONS CARTER
Fixations carter
Search
015646 - GOUJON S01564600

1
P2R reference P2R reference 111316
Maker reference Maker reference 0156465

015646 - GOUJON S01564600

More information

Quantity required : 2

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107

1
P2R reference P2R reference 65462
Maker reference Maker reference 0201075

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107

More information

Quantity required : 2

016407 - RONDELLE S01640700

2
P2R reference P2R reference 65417
Maker reference Maker reference 0164075

016407 - RONDELLE S01640700

More information

Quantity required : 2

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107

3
P2R reference P2R reference 65462
Maker reference Maker reference 0201075

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107

More information

Quantity required : 3

WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057-

3
P2R reference P2R reference 63778
Maker reference Maker reference 0030575

WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057-

More information

Quantity required : 2

DRAIN SCREW GASKET (8,2x12x1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

4
P2R reference P2R reference 66689
Maker reference Maker reference 485703

DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

More information

Quantity required : 1

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PARTS" APE 50 2 stroke 1998>2018 -008420-

4
P2R reference P2R reference 63853
Maker reference Maker reference 0084205

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PARTS" APE 50 2 STROKE 1998>2018 -008420-

More information

Quantity required : 6

BOULON

5
P2R reference P2R reference
Maker reference Maker reference 239151

BOULON

OIL DRAIN CAP for TRANSMISSION REDUCTION SYSTEM "PIAGGIO GENUINE PART" 125 VESPA PX, COMMON FOR ALL 50cc SCOOTERS 1998>2004 -138345

5
P2R reference P2R reference 65737
Maker reference Maker reference 138345

OIL DRAIN CAP FOR TRANSMISSION REDUCTION SYSTEM "PIAGGIO GENUINE PART" 125 VESPA PX, COMMON FOR ALL 50CC SCOOTERS 1998>2004 -138345

More information

Quantity required : 1

NUT - FOR TRANSMISSION CRANKCASE "PIAGGIO GENUINE PART" 50 APE -020007

6
P2R reference P2R reference 65454
Maker reference Maker reference 0200075

NUT - FOR TRANSMISSION CRANKCASE "PIAGGIO GENUINE PART" 50 APE -020007

More information

Quantity required : 3

0193014 - RENIFLARD

6
P2R reference P2R reference 65450
Maker reference Maker reference 01930145

0193014 - RENIFLARD

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057-

7
P2R reference P2R reference 63778
Maker reference Maker reference 0030575

WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057-

More information

Quantity required : 3

015344 - ECROU

7
P2R reference P2R reference 110148
Maker reference Maker reference 0153445

015344 - ECROU

More information

Quantity required : 5

008499 - BOULON S00849900

8
P2R reference P2R reference 63857
Maker reference Maker reference 0084995

008499 - BOULON S00849900

More information

Quantity required : 1

003058 - RONDELLE S00305800

8
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 5

OIL DRAIN CAP for TRANSMISSION REDUCTION SYSTEM "PIAGGIO GENUINE PART" 125 VESPA PX, COMMON FOR ALL 50cc SCOOTERS 1998>2004 -138345

9
P2R reference P2R reference 65737
Maker reference Maker reference 138345

OIL DRAIN CAP FOR TRANSMISSION REDUCTION SYSTEM "PIAGGIO GENUINE PART" 125 VESPA PX, COMMON FOR ALL 50CC SCOOTERS 1998>2004 -138345

More information

Quantity required : 1

GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" 50 APE, FL2 -222429

9
P2R reference P2R reference 65946
Maker reference Maker reference 222429

GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" 50 APE, FL2 -222429

More information

Quantity required : 1

015647 - BOULON S01564700

10
P2R reference P2R reference 111323
Maker reference Maker reference 0156475

015647 - BOULON S01564700

More information

Quantity required : 1

DRAIN SCREW GASKET (8,2x12x1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

10
P2R reference P2R reference 66689
Maker reference Maker reference 485703

DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

More information

Quantity required : 1

013880 - RONDELLE

11
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

013880 - RONDELLE

More information

Quantity required : 2

016407 - RONDELLE S01640700

12
P2R reference P2R reference 65417
Maker reference Maker reference 0164075

016407 - RONDELLE S01640700

More information

Quantity required : 4

104296 - RESSORT

13
P2R reference P2R reference 65695
Maker reference Maker reference 104296

104296 - RESSORT

More information

Quantity required : 2

OIL TANK HOSE "PIAGGIO GENUINE PART" APE, 125 VESPA PX -CM002311

14
P2R reference P2R reference 72887
Maker reference Maker reference CM002311

OIL TANK HOSE "PIAGGIO GENUINE PART" APE, 125 VESPA PX -CM002311

More information

Quantity required : 1
