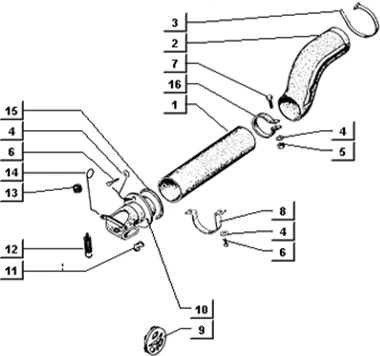

Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999 PIAGGIO VU

Moteur : T28 TUYAU ADDUCTION AIR
Tuyau adduction air
Search
108827 - MANCHON

1
P2R reference P2R reference 116534
Maker reference Maker reference 108827

108827 - MANCHON

More information

Quantity required : 1

215015 - TUYAU AIR CHAUD

1
P2R reference P2R reference 120017
Maker reference Maker reference 215015

215015 - TUYAU AIR CHAUD

More information

Quantity required : 1

1093305 - ARBRE CPLT

2
P2R reference P2R reference 116577
Maker reference Maker reference 1093305

1093305 - ARBRE CPLT

More information

Quantity required : 1

1891385 - TUYAU AIR CHAUD

2
P2R reference P2R reference 119569
Maker reference Maker reference 1891385

1891385 - TUYAU AIR CHAUD

More information

Quantity required : 1

257134 - COLLIER

3
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 1

003054 - RONDELLE S00305400

4
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

003054 - RONDELLE S00305400

More information

Quantity required : 19

JOINT

4
P2R reference P2R reference
Maker reference Maker reference 109098

JOINT

020104 - ECROU S02010400

5
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

020104 - ECROU S02010400

More information

Quantity required : 3

109096 - PORTE AIR

5
P2R reference P2R reference 115861
Maker reference Maker reference 109096

109096 - PORTE AIR

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372

6
P2R reference P2R reference 63850
Maker reference Maker reference 0083725

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372

More information

Quantity required : 7

1404945 - TUBE

6
P2R reference P2R reference 119776
Maker reference Maker reference 1404945

1404945 - TUBE

More information

Quantity required : 1

031023 - VIS S03102300

7
P2R reference P2R reference 65629
Maker reference Maker reference 0310235

031023 - VIS S03102300

More information

Quantity required : 1

031040 - VIS

7
P2R reference P2R reference 110312
Maker reference Maker reference 031040

031040 - VIS

More information

Quantity required : 1

020206 - ECROU S02020600

8
P2R reference P2R reference 65474
Maker reference Maker reference 0202065

020206 - ECROU S02020600

More information

Quantity required : 3

215018 - DEMI COLLIER

8
P2R reference P2R reference 110978
Maker reference Maker reference 215018

215018 - DEMI COLLIER

More information

Quantity required : 1

016406 - RONDELLE S01640600

9
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 12

214163 - ETRANGLEUR AIR CHAUD

9
P2R reference P2R reference 112182
Maker reference Maker reference 214163

214163 - ETRANGLEUR AIR CHAUD

More information

Quantity required : 2

031088 - VIS S03108800

10
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

031088 - VIS S03108800

More information

Quantity required : 3

219021 - RACCORD

10
P2R reference P2R reference 117120
Maker reference Maker reference 219021

219021 - RACCORD

More information

Quantity required : 1

109744 - RESSORT

11
P2R reference P2R reference 111462
Maker reference Maker reference 109744

109744 - RESSORT

More information

Quantity required : 1

RESSORT

11
P2R reference P2R reference
Maker reference Maker reference 219025

RESSORT

12
P2R reference P2R reference
Maker reference Maker reference 0155505

219024 - RESSORT

12
P2R reference P2R reference 110567
Maker reference Maker reference 219024

219024 - RESSORT

More information

Quantity required : 1

056825 - PASSE CABLE

13
P2R reference P2R reference 110573
Maker reference Maker reference 0568255

056825 - PASSE CABLE

More information

Quantity required : 1

003056 - RONDELLE

13
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 11

219026 - TIRANT

14
P2R reference P2R reference 114779
Maker reference Maker reference 219026

219026 - TIRANT

More information

Quantity required : 1

216191 - JOINT

15
P2R reference P2R reference 113042
Maker reference Maker reference 216191

216191 - JOINT

More information

Quantity required : 1

216353 - COLLIER

16
P2R reference P2R reference 110603
Maker reference Maker reference 216353

216353 - COLLIER

More information

Quantity required : 1
