Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

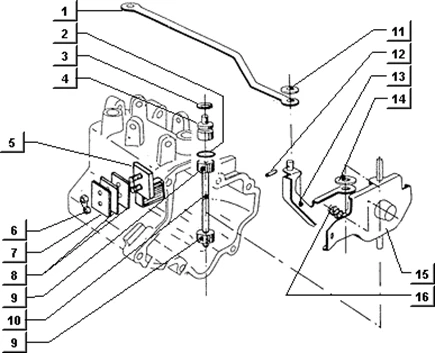

Moteur : T22 BOITIER AIMANT-LEVIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/331/Ape_TM_703_Diesel_FL2_422CC_1997-2004_T22_20251008094528.PNG)
1 |
247005 - ASTA COLLEGAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/8/img/63818.jpg)
2 |
006612 - CIRCLIPS S00661200 More informationQuantity required : 1 |
||||||
|
3 |
2352844 - BUSSOLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
4 |
O'RING GASKET - FOR WATER PUMP OR GEARBOX "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO APE -224035 More informationQuantity required : 1 |
||||||
|
5 |
236276 - CONTEN.CALAMIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
6 |
012112 - ECROU S01211200 More informationQuantity required : 1 |
||||||
|
7 |
PLAQUETTE |
||||||
|
8 |
L4775578 - JOINT More informationQuantity required : 1 |
||||||
|
9 |
L3525115 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
10 |
235282 - PERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
11 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
|
12 |
246104 - SPILLO DI FERM More informationQuantity required : 1 |
||||||
|
13 |
2470034 - JOINT CYLINDRE PK50S More informationQuantity required : 1 |
||||||
|
14 |
ENTRETOISE |
||||||
|
15 |
L5201257 - LEVA DI REGOL. More informationQuantity required : 1 |
||||||
|
16 |
168160 - RESSORT More informationQuantity required : 1 |
All the exploded views of this vehicle
-
