Vehicle Exploded View - APRILIA ATLANTIC 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

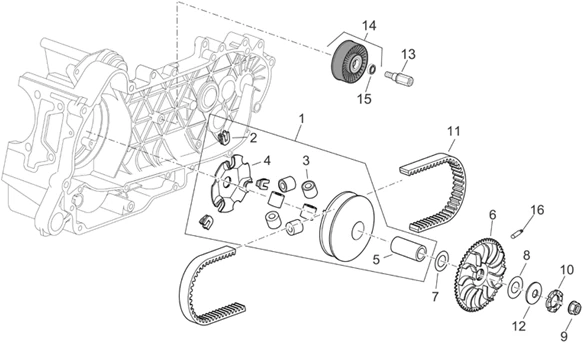

Moteur : 29.54 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/239/Atlantic_125_2006-2008_29.54.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/1/8/img/157618.jpg)
0 |
TRANSMISSION KIT"PIAGGIO GENUINE PARTS" BELT,ROLLERS,GUIDES- 300 MP3, YOURBAN, X7, VESPA GTS/GILERA 300 NEXUS, SR-MAX/APRILIA 300 ATLANTIC -1R000447 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/0/4/img/157604.jpg)
0 |
TRANSMISSION KIT"PIAGGIO GENUINE PARTS" BELT,ROLLERS,GUIDES- 125 DNA, HEXAGON GTX, X9/ATLANTIC 125-250 2003>2008 -1R000433 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/5/1/img/139451.jpg)
1 |
DRIVING PULLEY/VARIATOR "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS, X7/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY CUB, 300 SR-MAX -CM1444085 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/3/img/73233.jpg)
1 |
DRIVING PULLEY "PIAGGIO GENUINE PART" 125 MP3, BEVERLY, X7, X8, X9, X-EVO, GTS/APRILIA 125 ATLANTIC -CM144403- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
2 |
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, VESPA LX 2005>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005> -4348555- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/5/img/69255.jpg)
2 |
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 250-300 MP3 2006>2018, 250 X7, X8, X9 2005>2008/VESPA 250-300 GTS-GTV 2005>2018 -843028 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/4/img/69604.jpg)
3 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (SOLD PER UNIT) -849480 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
3 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" 125 BEVERLY, X9, MP3, X10, X7, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC, SPORT-CITY, SR-MAX, SCARABEO/GILERA 125 NEXUS, RUNNER (7,4 G) (SET OF 6) -CM1038045- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/3/img/69223.jpg)
4 |
VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -842204- More informationQuantity required : 1 |
|||||||||
5 |
483889 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/8/img/69358.jpg)
6 |
DRIVE PULLEY "PIAGGIO GENUINE PART" 125 X-EVO 2007>, X8 2004>, X9 2003>, MP3 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007> -8456075- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/6/img/69136.jpg)
6 |
DRIVE PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE 250-300 MAXISCOOTER -840193 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
7 |
DRIVING PULLEY WASHER WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -434885- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/6/img/66436.jpg)
8 |
DRIVING PULLEY WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -433391- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/3/img/69153.jpg)
8 |
840533 - JOINT More informationQuantity required : 1 |
|||||||||
|
9 |
Écrou |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
9 |
NUT - FOR IGNITION FLYWHEEL/CLUTCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -B015804 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/7/img/68667.jpg)
10 |
KICK STARTER PINION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -827386- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/7/9/img/69179.jpg)
11 |
BELT "PIAGGIO GENUINE PART" 125 LIBERTY, MP3, X7, X8, X9, X-EVO, FLY, VESPA LX, VESPA GTS, YOURBAN/APRILIA 125 ATLANTIC, SR-MAX/GILERA 125 NEXUS, RUNNER -841213- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/3/img/68843.jpg)
11 |
BELT "PIAGGIO GENUINE PART" 250 X9-EVO, MP3, X7, X8, X-EVO, VESPA GTS, 300 MP3, VESPA GTS/APRILIA 300 SR-MAX/GILERA 250-300 NEXUS -82941R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
12 |
DRIVING PULLEY SPRING WASHER "PIAGGIO GENUINE PART"COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -880950- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/6/img/68736.jpg)
13 |
828217 - VIS More informationQuantity required : 1 |
|||||||||
|
14 |
Poulie dentée |
|||||||||
|
15 |
82577R - ROULEMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/0/img/66420.jpg)
16 |
VARIATOR PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -432204- More informationQuantity required : 1 |
|||||||||
