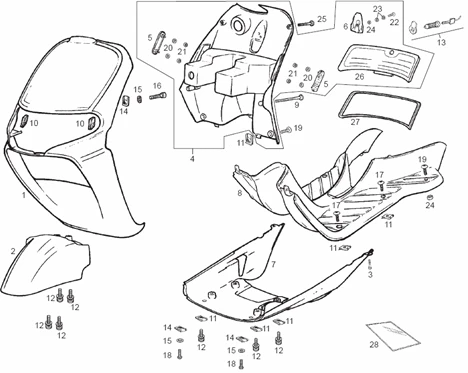

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50-100 4T E2 2004-2006 (EMEA)

	P2R reference	187350
	Maker reference	00G015133575

00G015133575 - TABLIER AV.

	P2R reference	151209
	Maker reference	20G01502351

20G01502351 - TABLIER AV.

	P2R reference	187351
	Maker reference	20G00703021

20G00703021 - GUARD.DT.INF.ATLANTIS P/P

	P2R reference	63939
	Maker reference	00G007130225

00G007130225 - GARDE BOUE AV.

	P2R reference	187351
	Maker reference	20G00703021

20G00703021 - GUARD.DT.INF.ATLANTIS P/P

	P2R reference	187352
	Maker reference	00G00714027

00G00714027 - GARDE BOUE AV.

	P2R reference	63682
	Maker reference	000110516015

00011051601 - VIS TARAUD 5,1X16 NOIR CL89H

	P2R reference	187353
	Maker reference	00G06805433

00G06805433 - INTER.ECU FR.

	P2R reference	187354
	Maker reference	00G06805431

00G06805431 - INTER.ECU FR.

	P2R reference	71569
	Maker reference	AP8124719

AP8124719 - CATADIOPTRE, AMBRE

	P2R reference	187355
	Maker reference	00G06301102

00G06301102 - CROCHET

	P2R reference	187356
	Maker reference	00G06301101

00G06301101 - CROCHET

	P2R reference	187357
	Maker reference	00G05902862

00G05902862 - PROTECTION INF.CHASSIS

	P2R reference	70237
	Maker reference	86690100W2N

86690100W2N - PROTECTION INF.CHASSIS

	P2R reference	63993
	Maker reference	00G01504091

00G01504091 - REPOSE-PIED

	P2R reference	187358
	Maker reference	00G01504092

00G01504092 - REPOSE-PIED

	P2R reference	63684
	Maker reference	000110550015

00011055001 - VIS TARAUD 5X50 NOIR CL89H

	P2R reference	187298
	Maker reference	00G05700101

00G05700101 - BUTEE PHARE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	64277
	Maker reference	00H00600681

LOCKS FOR REAR BOOT "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00600681

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	63994
	Maker reference	00G01504701

00G01504701 - BOULON SER.

	P2R reference	63702
	Maker reference	000121515005

00012151500 - VIS A TETE RONDE A FENTES C

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	63588
	Maker reference	000000230405

00000023040 - ECROU INDESSERABLE4M70

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	63683
	Maker reference	000110518015

00011051801 - VIS TARAUD

	P2R reference	64140
	Maker reference	00G05902911

00G05902911 - COUVRE COFFRE

	P2R reference	187359
	Maker reference	00G05902913

00G05902913 - COUVRE COFFRE

	P2R reference	187360
	Maker reference	00G05902621

00G05902621 - JOINT COUVERCLE COFFRE

	P2R reference	187361
	Maker reference	00G05148654

00G05148654 - JEU ADHESIF

	P2R reference	187362
	Maker reference	00G05148655

00G05148655 - JEU ADHESIF

	P2R reference	187363
	Maker reference	00G05148651

00G05148651 - JEU ADHESIF

	P2R reference	187364
	Maker reference	00G05148653

00G05148653 - JEU ADHESIF

	P2R reference	187365
	Maker reference	86174900WA1

86174900WA1 - R-CTO.KIT CALCAS ATL.50 Y 100 AZ.GREGOR

	P2R reference	187366
	Maker reference	00G05148652

00G05148652 - JEU ADHESIF
