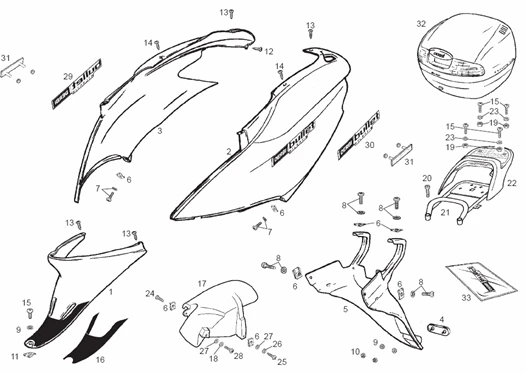

Vues éclatées : 10 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1126/Atlantis_50_Bullet_3ª_ed_E2_2005_(EMEA_NAFTA)_10.png)
1 |
00G06800581C5 - CORPS INFERIEUR SELLE More informationQuantity required : 1 |
||||||
|
2 |
00G00540701 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
2 |
00G00540702C5 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
3 |
00G00540691C5 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
|
3 |
00G00540692C5 - R-S-ENSEMBLE COUVERCLE LATERAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
4 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001 More informationQuantity required : 1 |
||||||
|
5 |
00G01507863 - SUPPL.DE GARDE-BOUE ARRIERE H. More informationQuantity required : 1 |
||||||
|
5 |
00G01508863 - SUPPL.DE GARDE-BOUE ARRIERE H. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
7 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
8 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
9 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
10 |
00000023040 - ECROU INDESSERABLE4M70 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
11 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/8/img/63678.jpg)
12 |
SCREW - (3,6X25) FOR HEADLIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00011032501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/3/img/63683.jpg)
13 |
00011051801 - VIS TARAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/2/img/63682.jpg)
14 |
00011051601 - VIS TARAUD 5,1X16 NOIR CL89H More informationQuantity required : 1 |
||||||
|
15 |
00012151500 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
|
16 |
00G04607501 - ADHESIF More informationQuantity required : 1 |
||||||
|
17 |
00G00704141 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
18 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
|
20 |
00000004830 - BOULON TETE HEX.8M125X30 D933 More informationQuantity required : 1 |
||||||
|
21 |
00G01409191A - ENSAMBLE PORTE-PAQUET AR. More informationQuantity required : 1 |
||||||
|
22 |
00G014042435 - COUVERCLE SUP. PORTE-BAGAGES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
23 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
24 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
|
25 |
00092063514 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
26 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
28 |
|
||||||
|
29 |
00G04627112 - ADHESIF More informationQuantity required : 1 |
||||||
|
29 |
00G04627111 - ADHESIF More informationQuantity required : 1 |
||||||
|
30 |
00G04618102 - ADHESIF More informationQuantity required : 1 |
||||||
|
30 |
00G04618101 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
31 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752- More informationQuantity required : 1 |
||||||
|
32 |
TOP CASE |
||||||
|
32 |
TOP CASE |
||||||
|
33 |
00G05150652 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00G05150651 - JEU ADHESIF More informationQuantity required : 1 |
