Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 O2 Bullet 2ª ed E2 2003 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

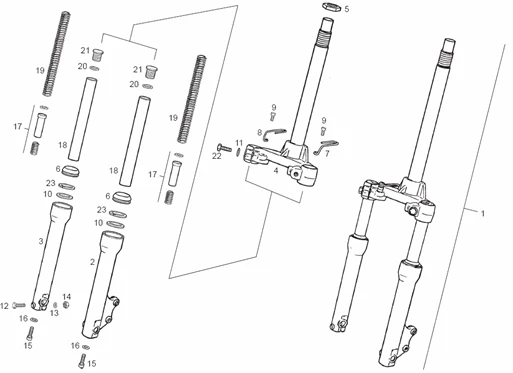

Suspensions - roues : 2 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1132/Atlantis_50_O2_Bullet_2_ed_E2_2003_APAC_EMEA_2_20250925174558.png)
1 |
00G00208001 - ENS.FOURCHE DIRECTRICE More informationQuantity required : 1 |
||||||
|
2 |
00G00202121 - FOURREAU DE FOURCHE G. More informationQuantity required : 1 |
||||||
|
3 |
00G00202131 - FOURREAU DE FOURCHE DR. More informationQuantity required : 1 |
||||||
|
4 |
00G00205011 - SOUS-ENS. TIGE PLATINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/4/img/63924.jpg)
5 |
NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G00200112 More informationQuantity required : 1 |
||||||
|
6 |
00G00203231 - CACHE-POUSSIERE FOURCHE More informationQuantity required : 1 |
||||||
|
7 |
00G00900521 - RES.GUIDE CABLE More informationQuantity required : 1 |
||||||
|
8 |
00G01502381 - RES.GUIDE CABLE COMT.KMS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
9 |
SCREW - MULTI PURPOSE M6X10 "PIAGGIO GENUINE PART" -319446 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/7/img/63927.JPG)
10 |
00G00202471 - R-ANNEAU FOURREAU FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
11 |
00000031100 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
13 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
14 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
16 |
00G00201281 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
00G00201531 - R-ENSEMBLE TUBE HYDRAU. More informationQuantity required : 1 |
||||||
|
18 |
00G00201191 - TUBE DE FOURCHE More informationQuantity required : 1 |
||||||
|
19 |
00G00204171 - R-RESSORT FOURCHE More informationQuantity required : 1 |
||||||
|
20 |
00G00202441 - CUVETTE More informationQuantity required : 1 |
||||||
|
21 |
00G02001541 - R-BOUCHON EXT. FOUR. FOURCHE More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
00G00200701 - JOINT D'ARRET More informationQuantity required : 1 |
