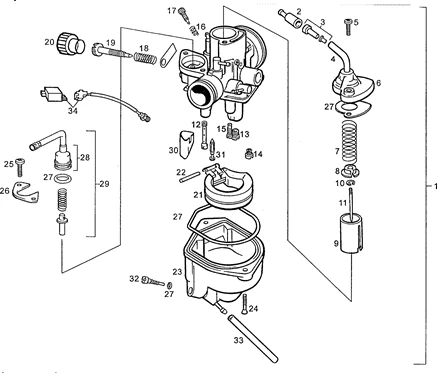

Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS O2 DERBI 1999-2000 EXPORT

	P2R reference	193910
	Maker reference	00G03232011

00G03232011 - ENSAMBLE CARBURATEUR

	P2R reference	193911
	Maker reference	00G03234011

00G03234011 - ENSAMBLE CARBURATEUR

	P2R reference	193471
	Maker reference	00G03201561

00G03201561 - R-CAPUCHON CABLE ESS

	P2R reference	193472
	Maker reference	00F03200021

00F03200021 - R-ENS.VIS-TENDEUR DE CABLE ESS

	P2R reference	193912
	Maker reference	00G03200761

00G03200761 - R-TUYAU CABLE ESSEN.VAM.AU.40K

	P2R reference	64071
	Maker reference	00G03200061

00G03200061 - R-BOUL.SER.COUV.CHAMBRE MEL

	P2R reference	193473
	Maker reference	00G03201231

00G03201231 - R-COUV.CHAMBRE MELANGE VM.AU.4

	P2R reference	66626
	Maker reference	482942

SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882

	P2R reference	66205
	Maker reference	288873

CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873-

	P2R reference	63915
	Maker reference	00F03201211

00F03201211 - BOISSEAU

	P2R reference	66204
	Maker reference	288872

NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872

	P2R reference	64077
	Maker reference	00G03201431

NEEDLE FOR CARB "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, GPR 1998>2004 -00G03201431-

	P2R reference	72171
	Maker reference	AP8206797

AP8206797 - GICLEUR

	P2R reference	188373
	Maker reference	00H03203421

00H03203421 - PULVERISATEUR GA210

	P2R reference	193913
	Maker reference	00G03201031

00G03201031 - GICLEUR MAXIMUM 50

	P2R reference	193914
	Maker reference	00G03214031

00G03214031 - GICLEUR MAXIMUM 57

	P2R reference	188376
	Maker reference	00G04103181

00G04103181 - GICLEUR MINIMUM.34

	P2R reference	194101
	Maker reference	00G03203481

00G03203481 - GICLEUR AIR

	P2R reference	189353
	Maker reference	00H03201481

00H03201481 - GICLEUR DE RALENTI

	P2R reference	64074
	Maker reference	00G03200721

00G03200721 - R-RESSORT REG.AIR MIN.

	P2R reference	64075
	Maker reference	00G03200731

00G03200731 - R-VIS REG.AIR MIN.

	P2R reference	65751
	Maker reference	152608

152608 - VIS

	P2R reference	64113
	Maker reference	00G04100131

SCREW - IDLE SPEED SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU 1998>2005 -00G04100131

	P2R reference	64114
	Maker reference	00G04100741

00G04100741 - R-BOUTON VIS REGL.VALV.ESS.

	P2R reference	66625
	Maker reference	482916

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916-

	P2R reference	66625
	Maker reference	482916

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916-

	P2R reference	193915
	Maker reference	00G03201201

00G03201201 - R-ENS.VASE ESSENCE

	P2R reference	64076
	Maker reference	00G03201091

00G03201091 - R-BOUL.SERG.VASE ESSENC.

	P2R reference	64072
	Maker reference	00G03200541

00G03200541 - R-BOULON SER.START.AUTOM.

	P2R reference	64073
	Maker reference	00G03200551

CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551-

	P2R reference	194102
	Maker reference	00G03201551

00G03201551 - R-PLOMBAGE FIX.START.AUT.

	P2R reference	66972
	Maker reference	498409

DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409

	P2R reference	193467
	Maker reference	00G04101771

00G04101771 - R-ENS. JOINTS CARBUR.

	P2R reference	193469
	Maker reference	00G03200391

00G03200391 - CORPS"STARTER"

	P2R reference	166292
	Maker reference	00G03202711

00G03202711 - R-ENSEM. STARTER AUTOM.

	P2R reference	193916
	Maker reference	00G03203711

00G03203711 - R-ENSEM. STARTER

	P2R reference	193917
	Maker reference	00G04100941

00G04100941 - R-BOUTON VIS REGL.VALV.ESS.

	P2R reference	66625
	Maker reference	482916

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916-

	P2R reference	193918
	Maker reference	00G04100951

00G04100951 - VIS

	P2R reference	193919
	Maker reference	00G04101681

00G04101681 - TUYAU ECOULEMENT CHAMBRE FOTT.

	P2R reference	65017
	Maker reference	00H06000151

00H06000151 - KIT CHAUFFE CARBURATEUR
