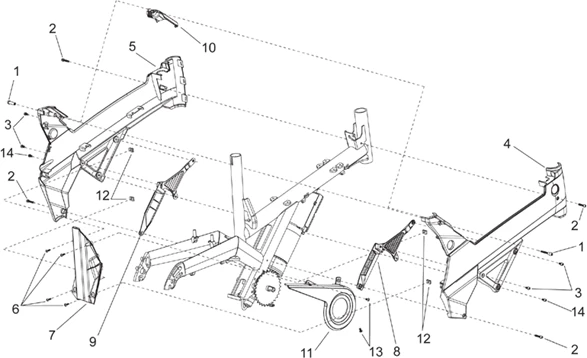

Chassis : 28.07 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/554/Bici_Elettrica_Enjoy_01_28.07.PNG)
1 |
Vis+ecrou |
||||||
|
2 |
Vis avec rondelle |
||||||
|
3 |
Vis avec rondelle |
||||||
|
4 |
Carène droite |
||||||
|
4 |
Carène droite |
||||||
|
5 |
Carène gauche |
||||||
|
5 |
AP8000418 - CARENE GAUCHE More informationQuantity required : 1 |
||||||
|
6 |
Vis |
||||||
|
7 |
Couvercle arr. |
||||||
|
8 |
Grille droite |
||||||
|
9 |
Grille gauche |
||||||
|
10 |
Couv. alimentation |
||||||
|
10 |
AP8000419 - COUV. ALIMENTATION More informationQuantity required : 1 |
||||||
|
11 |
Carter chaîne |
||||||
|
12 |
Clip |
||||||
|
13 |
Vis |
||||||
|
14 |
Vis avec rondelle |
