Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 2T E2 2009-2014 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

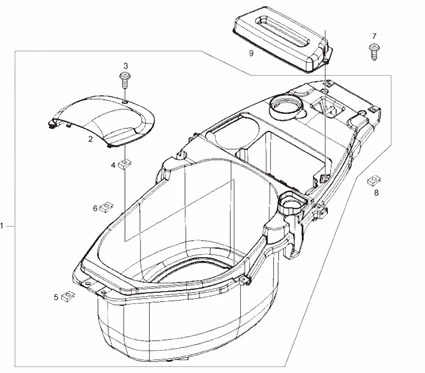

Châssis - parties plastiques - carrosseries : 8 LOGEMENT SOUS-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1141/Boulevard_50_2T_E2_2009-2014_(EMEA)_8.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/0/img/67740.jpg)
1 |
HELMET COMPARTMENT "PIAGGIO GENUINE PART" 50-125 FLY 2008> -623460000C- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/7/img/67667.jpg)
2 |
621976000C - ABATTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
|
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
|
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/1/img/67021.jpg)
9 |
HELMET STORAGE CAP "PIAGGIO GENUINE PART" FLY 50-125 2005>2011, LIBERTY 50-125 2006>2017 -562897 More informationQuantity required : 1 |
