Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring PI 1100 2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

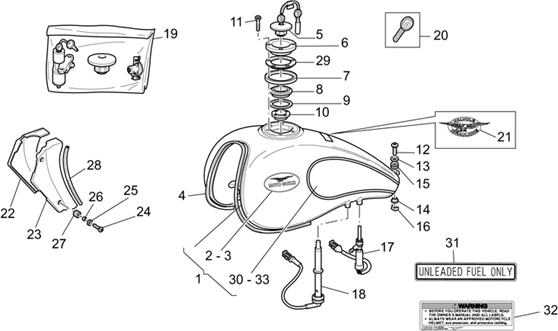

Chassis : 33.20 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/923/California_EV-EV_Touring_PI_1100_2002_33.20.png)
1 |
GU03100220 - SERBATOIO BENZ.GREZZO More informationQuantity required : 1 |
||||||
|
1 |
GU89000446 - RESERVOIR CARBURANT BLANC More informationQuantity required : 1 |
||||||
|
1 |
GU03100200 - SERBATOIO BENZ.GREZZO More informationQuantity required : 1 |
||||||
|
1 |
GU89000466 - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
1 |
GU89000467 - RESERVOIR CARBURANT BLANC More informationQuantity required : 1 |
||||||
|
1 |
GU89000445 - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
1 |
GU89000444 - RESERVOIR CARBURANT ROUGE/NOIR More informationQuantity required : 1 |
||||||
|
1 |
GU89000465 - RESERVOIR CARBURANT ROUGE/NOIR More informationQuantity required : 1 |
||||||
|
2 |
GU03917841 - "DEC.DROITE ""MOTO GUZZI"" RO/NO" More informationQuantity required : 1 |
||||||
|
2 |
GU03917844 - "DEC.DROITE ""MOTO GUZZI"" RO/CHR" More informationQuantity required : 1 |
||||||
|
2 |
GU03917810 - "DEC.DROITE ""MOTO GUZZI"" ROU/OR" More informationQuantity required : 1 |
||||||
|
3 |
GU03917910 - "DEC.""MOTO GUZZI"" ROUGE/OR" More informationQuantity required : 1 |
||||||
|
3 |
GU03917941 - "DEC.""MOTO GUZZI"" ROUGE/ROUGE" More informationQuantity required : 1 |
||||||
|
3 |
GU03917944 - "DEC.""MOTO GUZZI"" ROUGE/CHROME" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
4 |
2B000909 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/5/4/img/99554.jpg)
5 |
FUEL CAP "PIAGGIO GENUINE PART" MOTO-GUZZI BELAGIO, CALIFORNIA, NEVADA, V7 -887874 More informationQuantity required : 1 |
||||||
|
6 |
GU03101900 - FLANGIA More informationQuantity required : 1 |
||||||
|
7 |
GU03102400 - GUARNIZIONE FLANGIA More informationQuantity required : 1 |
||||||
|
8 |
GU03102200 - GHIERA TAPPO More informationQuantity required : 1 |
||||||
|
9 |
GU03101600 - GUARNIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/4/0/img/102440.jpg)
10 |
GU03101720 - RIDUZIONE 38 MM More informationQuantity required : 1 |
||||||
|
11 |
GU03103200 - VITE GHIERE More informationQuantity required : 5 |
||||||
|
12 |
GU98350430 - VIS M8X30 More informationQuantity required : 1 |
||||||
|
13 |
GU95100239 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
GU31103565 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/7/img/132367.jpg)
15 |
GU91551131 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
16 |
GU92660801 - ECROU EN CAGE More informationQuantity required : 1 |
||||||
|
17 |
GU03105300 - SOUPAPE CARBURANT More informationQuantity required : 1 |
||||||
|
18 |
GU03103000 - SONDA LIVELLO BENZ. More informationQuantity required : 1 |
||||||
|
19 |
GU03736870 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
19 |
GU03736820 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
20 |
GU30735500 - CLE PAS CANTEE BRUT More informationQuantity required : 1 |
||||||
|
21 |
GU03917543 - DECALCO SOUPAPE HIDRAULIQUE More informationQuantity required : 1 |
||||||
|
22 |
GU03472400 - PARATIA DX CROMO More informationQuantity required : 1 |
||||||
|
23 |
GU03472900 - PARATIA SX CROMO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/7/img/133057.jpg)
24 |
GU98370614 - VIS M6X14 More informationQuantity required : 4 |
||||||
|
25 |
GU03462801 - ROSETTA SAGOMATA More informationQuantity required : 4 |
||||||
|
26 |
GU91180600 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
27 |
GU91551081 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
28 |
GU00823931055 - PROFILO GOMMA EPDM More informationQuantity required : 1 |
||||||
|
29 |
GU03103500 - ANELLO More informationQuantity required : 1 |
||||||
|
30 |
GU03923911 - DECALCO LIGNE D.OR More informationQuantity required : 1 |
||||||
|
30 |
GU03923912 - DECALCO LIGNE D.NOIRE More informationQuantity required : 1 |
||||||
|
30 |
GU03923913 - DECALCO LIGNE D.ROUGE More informationQuantity required : 1 |
||||||
|
31 |
GU03995730 - "DECALCO ""UNLEADED FUELONLY""" More informationQuantity required : 1 |
||||||
|
32 |
GU30944300 - "DECALCO ""ATTENTION""" More informationQuantity required : 1 |
||||||
|
33 |
GU03923914 - DECALCO LIGNE G.OR More informationQuantity required : 1 |
||||||
|
33 |
GU03923915 - DECALCO LIGNE G.NOIRE More informationQuantity required : 1 |
||||||
|
33 |
GU03923916 - DECALCO LIGNE G.ROUGE More informationQuantity required : 1 |
