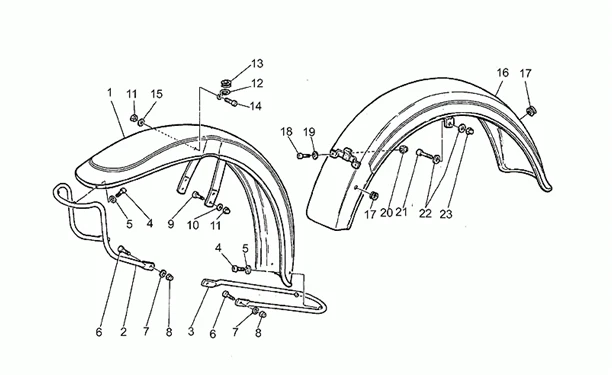

Chassis : 33.10 GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/479/California_II_1000_1983-1986_33.10.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
SUPPORT |
||||||
|
3 |
GU29435900 - SUPPORT INFER More informationQuantity required : 1 |
||||||
|
4 |
GU98822314 - VIS More informationQuantity required : 4 |
||||||
|
5 |
GU95100123 - RONDELLE More informationQuantity required : 4 |
||||||
|
6 |
GU98822425 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
7 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
8 |
GU92781081 - ECROU More informationQuantity required : 4 |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
10 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
11 |
GU92781062 - ECROU More informationQuantity required : 6 |
||||||
|
12 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/7/img/132367.jpg)
13 |
GU91551131 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
14 |
GU98822310 - VIS More informationQuantity required : 2 |
||||||
|
15 |
Rondelle évent. |
||||||
|
16 |
|
||||||
|
16 |
|
||||||
|
16 |
|
||||||
|
17 |
GU91551102 - PASSE-CABLE More informationQuantity required : 2 |
||||||
|
18 |
Vis |
||||||
|
18 |
|
||||||
|
19 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU92781081 - ECROU More informationQuantity required : 2 |
||||||
|
21 |
GU98822425 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
23 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
