Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Jackal 1100 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

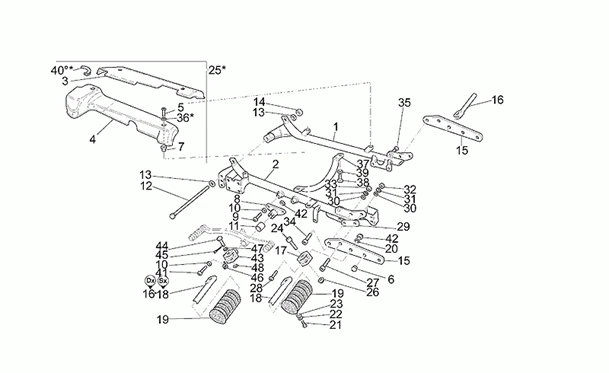

Chassis : 33.22 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/960/California_Jackal_1100_1999-2001_33.22.png)
1 |
GU03420331 - CULLA DX More informationQuantity required : 1 |
||||||
|
2 |
GU03422130 - CULLA SX More informationQuantity required : 1 |
||||||
|
3 |
GU03446930 - COPRICULLA DX CROMATO More informationQuantity required : 1 |
||||||
|
4 |
GU03447430 - ENJOLIVEUR G.CHROME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
5 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE-GUZZI -672380 More informationQuantity required : 5 |
||||||
|
6 |
GU93180115 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/9/3/img/132593.jpg)
7 |
GU93231606 - DOUILLE ANTI VIBRATION M6 More informationQuantity required : 5 |
||||||
|
8 |
GU03443960 - SUPPORTO PEDANA SX More informationQuantity required : 2 |
||||||
|
9 |
GU98230822 - VIS SUP. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
10 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 6 |
||||||
|
11 |
GU03444230 - DISTANZIALE More informationQuantity required : 2 |
||||||
|
12 |
GU03429500 - PERNO More informationQuantity required : 1 |
||||||
|
13 |
GU95000213 - RONDELLE More informationQuantity required : 2 |
||||||
|
14 |
GU92602312 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
GU18423950 - PLAQUE More informationQuantity required : 2 |
||||||
|
16 |
GU23440710 - TUYAU REP.-PIEDS AV.D. More informationQuantity required : 2 |
||||||
|
17 |
GU03443740 - SUPPORT More informationQuantity required : 2 |
||||||
|
18 |
GU23441810 - TUYAU REP.-PIEDS AV.G. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/6/2/8/img/102628.jpg)
19 |
FOOTREST RUBBER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA2002>2008, 1100 CALIFORNIA 1999>2004 -GU03443240- More informationQuantity required : 4 |
||||||
|
20 |
GU95000208 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
21 |
GU98084314 - VIS M6X14 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
22 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
23 |
GU91180602 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
24 |
GU98680435 - VIS TCEI M8X35 More informationQuantity required : 2 |
||||||
|
25 |
|
||||||
|
26 |
GU92630208 - ECROU More informationQuantity required : 2 |
||||||
|
27 |
GU98623635 - VIS M12X35 More informationQuantity required : 1 |
||||||
|
28 |
GU98230826 - VIS More informationQuantity required : 2 |
||||||
|
29 |
GU17444250 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
30 |
GU95100414 - RONDELLE More informationQuantity required : 4 |
||||||
|
31 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 4 |
||||||
|
32 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 1 |
||||||
|
33 |
GU92602312 - ECROU More informationQuantity required : 3 |
||||||
|
34 |
GU98623640 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
35 |
GU93180245 - BOUCHON More informationQuantity required : 1 |
||||||
|
36 |
GU95000206 - RONDELLE More informationQuantity required : 5 |
||||||
|
37 |
GU30425260 - TRAVERSE COMM.BRAS DUBERCEAU More informationQuantity required : 1 |
||||||
|
38 |
GU98231022 - VIS More informationQuantity required : 2 |
||||||
|
39 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
40 |
GU00823931055 - PROFILO GOMMA EPDM More informationQuantity required : 1 |
||||||
|
41 |
GU98230851 - VIS More informationQuantity required : 2 |
||||||
|
42 |
GU92630508 - ECROU More informationQuantity required : 4 |
||||||
|
43 |
GU03443730 - SUPPORT More informationQuantity required : 2 |
||||||
|
44 |
GU23442210 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/2/img/132762.jpg)
45 |
GU95401215 - GOUPILLE More informationQuantity required : 2 |
||||||
|
46 |
GU03441130 - MOLLA More informationQuantity required : 2 |
||||||
|
47 |
GU95100250 - RONDELLE 8,5X18X0,5 More informationQuantity required : 2 |
||||||
|
48 |
GU95129130 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
