Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

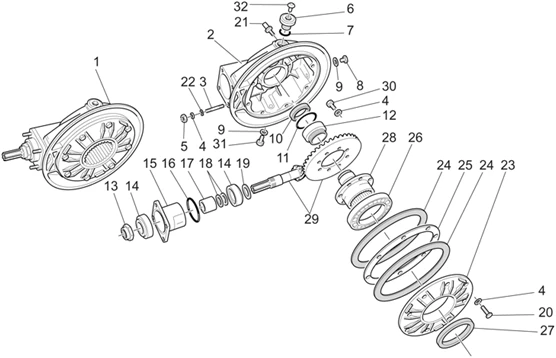

Chassis : 33.18 TRANSMISSION CPL. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_33.18.PNG)
1 |
Carter de transmission |
||||||
|
2 |
GU30350360 - CARTER DE TRANSMISSION More informationQuantity required : 1 |
||||||
|
3 |
GU96508045 - VIS SANS TETE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
4 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/0/6/img/69806.jpg)
5 |
860651 - ECROU More informationQuantity required : 4 |
||||||
|
6 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
7 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
|
8 |
GU95980214 - BOUCHON NIVEAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
9 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO -GU01528930 More informationQuantity required : 2 |
||||||
|
10 |
GU90413850 - BAGUE D'ETANCHEITE 38X50X7 More informationQuantity required : 1 |
||||||
|
11 |
GU12351100 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
12 |
2B006088R - ROULEMENT A AGUILLES More informationQuantity required : 1 |
||||||
|
12 |
2B006088R - ROULEMENT A AGUILLES More informationQuantity required : 1 |
||||||
|
13 |
GU30356760 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/7/img/132427.jpg)
14 |
BEARING FOR TRANSMISSION SHAFT (24X5) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92249227- More informationQuantity required : 2 |
||||||
|
15 |
GU18352400 - FLASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/8/img/132248.jpg)
16 |
GU90706584 - JOINT 58,42X2,62 More informationQuantity required : 1 |
||||||
|
17 |
GU18355100 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
18 |
GU12355202 - RONDELLE AJUSTEM.0,1 MM More informationQuantity required : 1 |
||||||
|
18 |
GU12355203 - RONDELLE AJUSTEM.0,15 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355320 - CALE 1 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355321 - CALE 1,1 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355322 - CALE 1,2 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355323 - CALE 1,3 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355324 - CALE 1,4 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355325 - CALE 1,5 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355326 - CALE 1,6 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355327 - CALE 1,7 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355328 - CALE 1,8 MM More informationQuantity required : 1 |
||||||
|
19 |
GU19355329 - CALE 1,9 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/2/8/img/129628.jpg)
20 |
GU19357660 - VIS M8X25 More informationQuantity required : 8 |
||||||
|
21 |
B064264 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
22 |
GU95005308 - RONDELLE More informationQuantity required : 4 |
||||||
|
23 |
GU17350400 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/3/2/img/129332.jpg)
24 |
GU17350700 - JOINT More informationQuantity required : 2 |
||||||
|
25 |
GU17355400 - CALE 0,8 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355402 - CALE 0,9 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355404 - CALE 1 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355406 - CALE 1,1 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355408 - CALE 1,2 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355410 - CALE 1,3 MM More informationQuantity required : 1 |
||||||
|
25 |
GU17355412 - CALE 1,5 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/2/img/132382.jpg)
26 |
TRANSMISSION BEARING (70X10X13) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92201070- More informationQuantity required : 1 |
||||||
|
27 |
GU90417085 - BAGUE D'ETANCHEITE 70X85X8 More informationQuantity required : 1 |
||||||
|
28 |
GU03351450 - PERNO FORATO More informationQuantity required : 1 |
||||||
|
29 |
GU30354602 - COUPLE CONIQUE 8/33 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/3/4/img/129134.jpg)
30 |
GU12356300 - VIS More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
31 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
32 |
GU93180245 - BOUCHON More informationQuantity required : 1 |
