Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

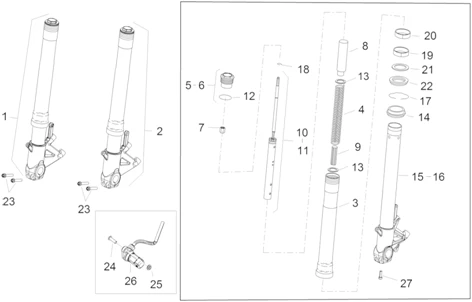

Suspensions : 04.025 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_04.025.PNG)
1 |
B045728 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
1 |
B044311 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
B045729 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
2R000021 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
3 |
897328 - FOURREAU More informationQuantity required : 1 |
||||||
|
3 |
897335 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
4 |
2B000205 - RESSORT More informationQuantity required : 2 |
||||||
|
4 |
2R000022 - TUYAU PRECHARGE More informationQuantity required : 1 |
||||||
|
5 |
2R000010 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
5 |
897336 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
2R000011 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
6 |
897329 - RESSORT More informationQuantity required : 1 |
||||||
|
7 |
897331 - ECROU More informationQuantity required : 2 |
||||||
|
7 |
2R000023 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
8 |
2R000012 - TUYAU PRECHARGE More informationQuantity required : 2 |
||||||
|
8 |
897331 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
897333 - GUIDE RES. More informationQuantity required : 2 |
||||||
|
9 |
897340 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
10 |
897334 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
10 |
897333 - GUIDE RES. More informationQuantity required : 1 |
||||||
|
11 |
897349 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
11 |
897328 - FOURREAU More informationQuantity required : 1 |
||||||
|
12 |
897335 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/6/img/42726.jpg)
12 |
897342 - DOUILLE DE COULISSEMENT More informationQuantity required : 1 |
||||||
|
13 |
897336 - RONDELLE More informationQuantity required : 2 |
||||||
|
13 |
897343 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/1/img/42721.jpg)
14 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897337- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/8/img/42728.jpg)
14 |
FORK OIL SEAL "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897344 More informationQuantity required : 1 |
||||||
|
15 |
897338 - TIGE More informationQuantity required : 1 |
||||||
|
15 |
897339 - BAGUE More informationQuantity required : 1 |
||||||
|
16 |
897350 - TIGE More informationQuantity required : 1 |
||||||
|
16 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897337- More informationQuantity required : 1 |
||||||
|
17 |
897339 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/5/img/42725.jpg)
17 |
897341 - BAGUE More informationQuantity required : 1 |
||||||
|
18 |
897340 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
18 |
2R000024 - CANNE + PIED More informationQuantity required : 1 |
||||||
|
19 |
897341 - BAGUE More informationQuantity required : 2 |
||||||
|
19 |
B064070 - RONDELLE More informationQuantity required : 1 |
||||||
|
20 |
897342 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
20 |
2R000020 - VIS More informationQuantity required : 1 |
||||||
|
21 |
897343 - RONDELLE More informationQuantity required : 2 |
||||||
|
21 |
B044312 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
22 |
FORK OIL SEAL "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897344 More informationQuantity required : 2 |
||||||
|
22 |
2R000017 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
23 |
AP8152283 - VIS BRIDE More informationQuantity required : 0 |
||||||
|
23 |
897335 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
24 |
AP8152273 - VIS BRIDE More informationQuantity required : 0 |
||||||
|
24 |
2R000016 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
25 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 0 |
||||||
|
25 |
2R000018 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
26 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 0 |
||||||
|
26 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 0 |
||||||
|
26 |
2R000019 - CANNE + PIED More informationQuantity required : 1 |
||||||
|
27 |
2R000013 - VIS More informationQuantity required : 2 |
||||||
|
27 |
B046048 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
28 |
AP8224470 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
29 |
AP8121811 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
30 |
B045400 - DETECTEUR PRESSION More informationQuantity required : 1 |
||||||
|
31 |
B046124 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
32 |
274369 - BOULON More informationQuantity required : 1 |
||||||
|
33 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 2 |
||||||
|
33 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 2 |
||||||
|
34 |
AP8152273 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
35 |
B044314 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
36 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
||||||
|
37 |
2L000032 - BOUCHON More informationQuantity required : 1 |
||||||
|
38 |
HUILE FOURCHE 1 L. |
