Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona RS 1000 1997-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

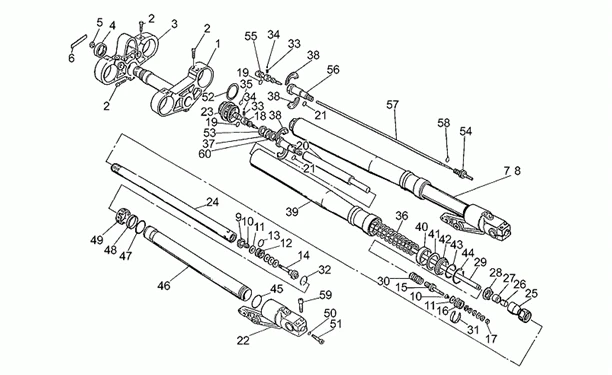

Chassis : 33.07 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/487/Daytona_RS_1000_1997-1998_33.07.PNG)
1 |
GU01494010 - BASE AVEC TUBE More informationQuantity required : 1 |
||||||
|
1 |
GU01494001 - PLAQUE INF.CLAIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
2 |
GU98622430 - VIS M8X30 More informationQuantity required : 7 |
||||||
|
3 |
Plaque sup.canon fusil |
||||||
|
3 |
|
||||||
|
4 |
GU30513401 - ECROU FIXATION TETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
5 |
STEERING COLUMN CAP "PIAGGIO GENUINE PART" MOTO GUZZI BELLAGIO 940 2007>2013, BREVA 750 2003>2009, CALIFORNIA 1994>2012, NEVADA 1992>2013 -GU23943410 More informationQuantity required : 1 |
||||||
|
6 |
GU01517700 - "DECALCO ""AQUILIA""" More informationQuantity required : 1 |
||||||
|
7 |
GU01490601 - TIGE DROITE CPL. More informationQuantity required : 1 |
||||||
|
8 |
GU01490701 - TIGE GAUCHE CPL. More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
GU01530511 - RESSORT More informationQuantity required : 4 |
||||||
|
11 |
Lame d'étallonage |
||||||
|
12 |
GU01530513 - PISTONCINO More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
|
14 |
|
||||||
|
15 |
|
||||||
|
16 |
|
||||||
|
17 |
|
||||||
|
18 |
|
||||||
|
19 |
GU01530520 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
20 |
|
||||||
|
21 |
GU01530522 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
22 |
GU01530523 - PORTARUOTA DX More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
|
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
GU01530526 - MANICOTTO More informationQuantity required : 2 |
||||||
|
26 |
GU01530527 - BOCCOLA More informationQuantity required : 2 |
||||||
|
27 |
|
||||||
|
28 |
|
||||||
|
29 |
|
||||||
|
30 |
|
||||||
|
31 |
GU01530532 - ANELLO More informationQuantity required : 2 |
||||||
|
32 |
Bague de butée |
||||||
|
33 |
|
||||||
|
34 |
|
||||||
|
35 |
|
||||||
|
36 |
GU01530537 - MOLLA More informationQuantity required : 2 |
||||||
|
37 |
|
||||||
|
37 |
GU01530538 - ENTRETOISE H=2,5MM More informationQuantity required : 2 |
||||||
|
38 |
GU01530540 - DEMI-CLAVETTES More informationQuantity required : 4 |
||||||
|
39 |
GU01530541 - FOURREAU More informationQuantity required : 2 |
||||||
|
40 |
GU01530542 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
41 |
GU01530543 - BAGUE More informationQuantity required : 2 |
||||||
|
42 |
Bague d'étanchéité |
||||||
|
43 |
GU01530545 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
44 |
Bague de butée |
||||||
|
45 |
GU01530547 - O-RING More informationQuantity required : 2 |
||||||
|
46 |
GU01530548 - STELO More informationQuantity required : 2 |
||||||
|
47 |
GU01530549 - ROSETTA More informationQuantity required : 2 |
||||||
|
48 |
GU01530550 - BAGUE More informationQuantity required : 2 |
||||||
|
49 |
GU01530551 - ANELLO DI FERMO More informationQuantity required : 2 |
||||||
|
50 |
GU01530552 - RONDELLE More informationQuantity required : 2 |
||||||
|
51 |
|
||||||
|
52 |
GU01530554 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
53 |
GU01530555 - ANELLO More informationQuantity required : 2 |
||||||
|
54 |
GU01530556 - SUPPORT More informationQuantity required : 1 |
||||||
|
55 |
Pointeau régl. |
||||||
|
56 |
GU01530558 - GRUPPO REGOLAZIONE More informationQuantity required : 1 |
||||||
|
57 |
GU01530559 - ASTA REGOLAZ. More informationQuantity required : 1 |
||||||
|
58 |
GU01530560 - O-RING More informationQuantity required : 1 |
||||||
|
59 |
GU98623430 - VIS More informationQuantity required : 4 |
||||||
|
60 |
GU01530563 - ROSETTA More informationQuantity required : 2 |
