Vehicle Exploded View - GILERA DNA 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

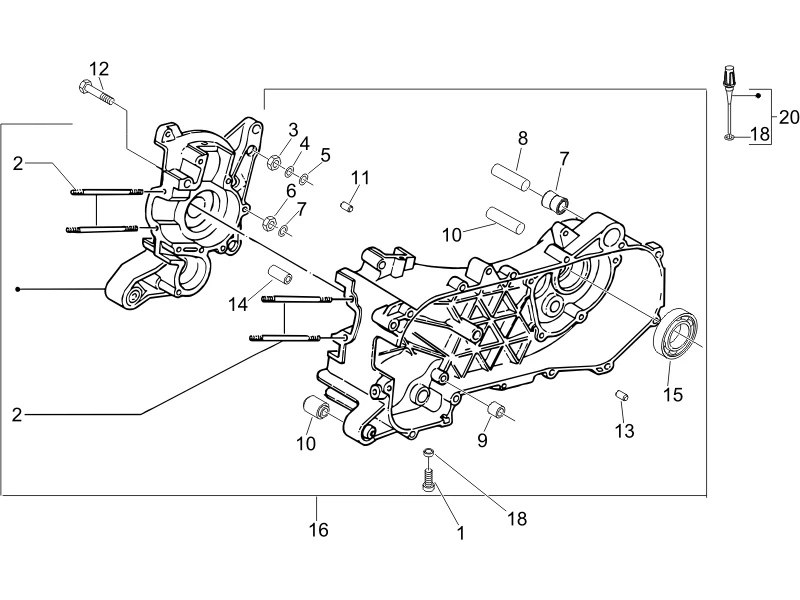

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/169/DNA_50_2006-023.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
1 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/2/img/70652.jpg)
2 |
CYLINDER STUD BOLT "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, NRG/ GILERA 50 STALKER, RUNNER 2 STROKE/ APRILIA SR, SR MOTARD 2 STROKE -1A003633R More informationQuantity required : 4 |
||||||
3 |
020006 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/1/img/66181.jpg)
4 |
287223 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/8/img/65698.jpg)
5 |
113533 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/6/img/66066.jpg)
7 |
SILENBLOC FOR CRANKCASE (SHOCK ABSORBER SUPPORT) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -267823 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/4/img/66054.jpg)
8 |
SPACER- FOR ABSORBER SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -266625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/9/img/66469.jpg)
9 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" FOR ALL 50CC L.C. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/6/img/66056.jpg)
10 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -266773 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
11 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -B017632 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
13 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
14 |
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
15 |
DRIVE SHAFT BEARING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC -435363 More informationQuantity required : 1 |
||||||
|
16 |
CM1275045 - CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
18 |
827085 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
19 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
20 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
