Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

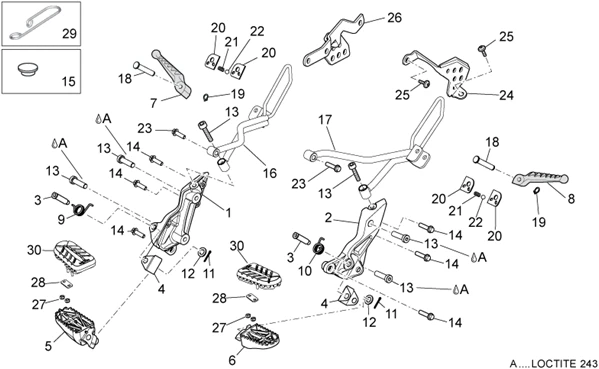

Chassis : 28.04 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/8/7/img/40187.jpg)
1 |
SUPPORT FOR RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -856779- More informationQuantity required : 1 |
||||||
1 |
Sup.pl.pilote dte |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/8/8/img/40188.jpg)
2 |
SUPPORT FOR LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -856780- More informationQuantity required : 1 |
||||||
|
2 |
Sup.pl.pilote gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/2/img/72602.jpg)
3 |
AP9100197 - PERNO ROTAZIONE PEDANA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/6/img/40726.jpg)
4 |
FOOTREST PLATE "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD -859921 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/6/7/img/42567.jpg)
5 |
RIGHT FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896664 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/6/8/img/42568.jpg)
6 |
LEFT FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/0/3/img/50003.jpg)
7 |
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, TUONO, FUTURA, 1200 DORSODURO -AP81464055 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/0/4/img/50004.jpg)
8 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750 SHIVER 2010>, DORSODURO 2008>, 1000 RSV-2 1998>, TUONO 2002>, FUTURA 2001>, 1200 DORSODURO 2010> -AP81464065- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/0/6/img/97206.jpg)
9 |
RETURN SPRING FOR RIDER FOOTREST (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 450-550 RXV, SXV -AP9100196 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/1/img/72601.jpg)
10 |
AP9100195 - MOLLA RICHIAMO PEDANA LATO SX More informationQuantity required : 1 |
||||||
|
11 |
AP8201431 - GOUPILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
12 |
AP8152176 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
13 |
AP8150236 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
14 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
15 |
AP8102600 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/6/5/6/img/42656.jpg)
16 |
SUPPORT FOR RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896936- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/6/5/7/img/42657.jpg)
17 |
SUPPORT FOR LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO -896940- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/2/img/73402.jpg)
18 |
CM228401 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
19 |
STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
20 |
AP8134451 - PLAQUE FDC R-PIED; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
21 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
22 |
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
23 |
AP8152289 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
24 |
860987 - PROTECTION More informationQuantity required : 1 |
||||||
|
25 |
AP8152055 - VIS More informationQuantity required : 2 |
||||||
|
26 |
890164 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
27 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451 More informationQuantity required : 4 |
||||||
|
28 |
890243 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
29 |
899075 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
30 |
898639 - LATERAL PROTECTION More informationQuantity required : 2 |
