Vehicle Exploded View - APRILIA DORSODURO 900 E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

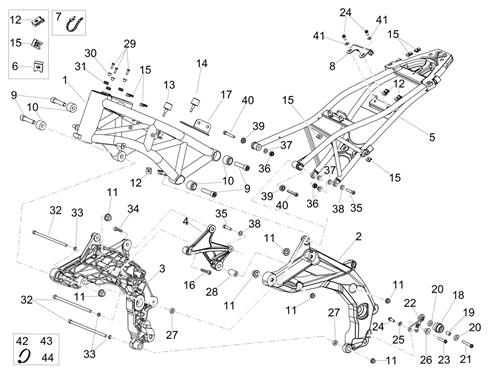

Chassis : 01.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/938/Dorsoduro_900_E4_ABS_2017_(EMEA_LATAM)_01.01.png)
1 |
89886800XR8 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/5/img/39125.jpg)
2 |
85153700XNB - FLANC G, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/2/img/39122.jpg)
3 |
RIGHT FLANK FRAME "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER 2010>2018, 750-900-1200 DORSODURO 2010>2018 NOIR -85153600XNB More informationQuantity required : 1 |
||||||
|
4 |
851541 - SUPPORT More informationQuantity required : 1 |
||||||
|
5 |
85495200XR8 - ACCROCHE-SELLE ROUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
||||||
|
7 |
GU06609600 - COLLIER More informationQuantity required : 2 |
||||||
|
8 |
851789 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/8/2/img/39482.jpg)
9 |
SCREW - FRONT FRAME FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO -852165 More informationQuantity required : 4 |
||||||
|
10 |
853037 - DOUILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
11 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
12 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268- More informationQuantity required : 2 |
||||||
|
13 |
AP8144277 - TAMPON FIN DE COURSE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/9/img/71739.jpg)
14 |
AP8144030 - TAMPON FIN DE COURSE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
16 |
AP8150195 - VIS More informationQuantity required : 1 |
||||||
|
17 |
860404 - PLAQUETTE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/6/img/72006.jpg)
18 |
CHAIN GUIDE ROLLER "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 125 RS, 850 SRV -AP8161074- More informationQuantity required : 1 |
||||||
|
19 |
AP8161076 - DISTANZIALE RULLO CATENA More informationQuantity required : 1 |
||||||
|
20 |
AP9100175 - CUSCINETTO A SFERE D8 D22 SP7 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
21 |
AP8152291 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
22 |
890206 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/8/0/0/img/151800.jpg)
23 |
2B004782 - VIS M8X35 8.8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/6/2/img/139062.jpg)
24 |
2B002416 - VIS More informationQuantity required : 1 |
||||||
|
25 |
AP8150009 - RONDELLE FER PLATE More informationQuantity required : 1 |
||||||
|
26 |
AP8121332 - DOUILLE; More informationQuantity required : 1 |
||||||
|
27 |
853036 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
28 |
853035 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
29 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
30 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
31 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
32 |
851784 - TIRANT PRISE MOTEUR; More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/7/img/50837.jpg)
33 |
AP8150101 - WASHER More informationQuantity required : 3 |
||||||
|
34 |
2B004168 - VIS More informationQuantity required : 1 |
||||||
|
35 |
2B002216 - VIS More informationQuantity required : 2 |
||||||
|
36 |
272176 - ECROU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
37 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
38 |
AP8150017 - RONDELLE More informationQuantity required : 2 |
||||||
|
39 |
860909 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/7/img/71817.jpg)
40 |
AP8150046 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
41 |
AP8150018 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
42 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
43 |
AP8120657 - COLLIER More informationQuantity required : 2 |
||||||
|
44 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 3 |
