Vehicle Exploded View - APRILIA DORSODURO 900 E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

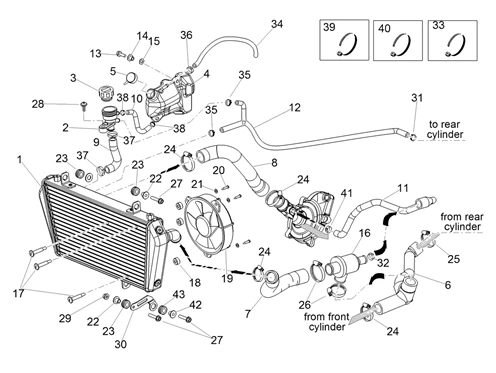

Installation refroidissement : 10.020 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/828/Dorsoduro_900_E4_ABS_2018_(EMEA)_10.020.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/0/6/img/42706.jpg)
1 |
COOLING RADIATOR "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750 DORSODURO -897162- More informationQuantity required : 1 |
||||||
2 |
AP8144644 - BOCCHETTONE CARICO ACQUA More informationQuantity required : 1 |
||||||
|
3 |
AP8102615 - BOUCHON More informationQuantity required : 1 |
||||||
|
4 |
856802 - RESERVOIR REFOIDISSEMENT More informationQuantity required : 1 |
||||||
|
5 |
2B010567 - EXPANSION TANK PLUG More informationQuantity required : 1 |
||||||
|
5 |
2B010567 - EXPANSION TANK PLUG More informationQuantity required : 1 |
||||||
|
6 |
2B003862 - TUYAU More informationQuantity required : 1 |
||||||
|
7 |
2B003860 - TUYAU SOUPAP-RADIAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/3/img/42753.jpg)
8 |
897414 - TUYAU More informationQuantity required : 1 |
||||||
|
9 |
851599 - TUYAU More informationQuantity required : 1 |
||||||
|
10 |
890496 - TUYAU ESSENCE D.7X11 More informationQuantity required : 1 |
||||||
|
11 |
2B003861 - TUBE SOUP.POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/8/5/4/img/40854.jpg)
12 |
860328 - TUYAU DE PURGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
14 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/5/img/56865.jpg)
15 |
AP8220366 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/9/img/69109.jpg)
16 |
THERMOSTAT "PIAGGIO GENUINE PART" 750-900 DORSODURO, SHIVER, 1200 CAPONORD, 850 SRV/GILERA 800 GP -834232 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/6/img/71466.jpg)
17 |
AP8121464 - TIGE; More informationQuantity required : 3 |
||||||
|
18 |
AP8161083 - DISTANZIALE More informationQuantity required : 3 |
||||||
|
19 |
AP81249305 - VENTILATEUR CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
20 |
AP8150270 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
21 |
AP8150248 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
22 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
23 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/3/img/72883.jpg)
24 |
CM001924 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/5/img/55355.jpg)
25 |
AP8201409 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
26 |
CM226909 - COLLIER More informationQuantity required : 2 |
||||||
|
27 |
AP8152279 - VIS BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
28 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
29 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
30 |
2B004465 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
31 |
AP8120446 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
32 |
AP8101743 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
33 |
AP8120657 - COLLIER More informationQuantity required : 1 |
||||||
|
34 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
35 |
CM001914 - COLLIER More informationQuantity required : 2 |
||||||
|
36 |
AP8102738 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
37 |
CM001905 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/9/img/71169.jpg)
38 |
AP8102159 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/0/img/71200.jpg)
39 |
AP8102786 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
40 |
AP8102239 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
41 |
CM226901 - COLLIER More informationQuantity required : 1 |
||||||
|
42 |
AP9100594 - BUSSOLA COLLETTO D16-D10-SP7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/1/img/92911.jpg)
43 |
834040 - PASSE CABLES More informationQuantity required : 1 |
