Vehicle Exploded View - APRILIA EUROPA 50 1991-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

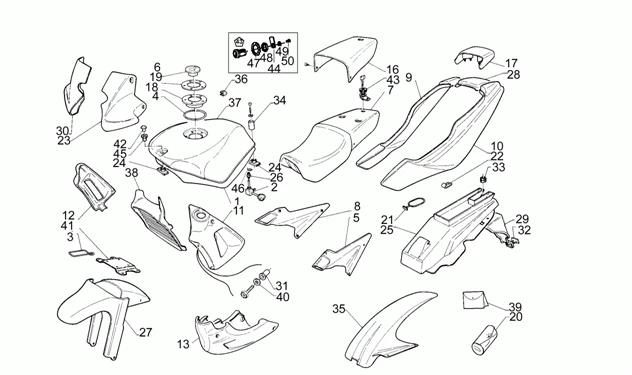

Chassis : 6 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/296/Europa_50_1991-1992_6.PNG)
1 |
Réservoir essence; |
||||||
|
2 |
ROBINET ESSENCE =8201397 |
||||||
|
3 |
GUIDE/CABLE |
||||||
|
4 |
AP8120702 - JOINT ORIFICE REMPL. More informationQuantity required : 1 |
||||||
|
5 |
FLANC GAUCHE PEINT.ALLUM |
||||||
|
6 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
7 |
SELLE PILOTE NOIRE |
||||||
|
8 |
FLANC DROIT |
||||||
|
9 |
FLANC DROIT NOIR |
||||||
|
10 |
FLANC GAUCHE NOIR |
||||||
|
11 |
CONVOYEUR GAUCHE NOIR |
||||||
|
12 |
TRANSFERT DR. |
||||||
|
13 |
EMBOUT NOIR |
||||||
|
16 |
COUVRE SELLE PASS.NOIR |
||||||
|
17 |
SPOILER ARRIERE NOIR |
||||||
|
18 |
AP8121784 - TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
|
19 |
AP8102361 - BAGUE BOUCHON More informationQuantity required : 1 |
||||||
|
20 |
TROUSSE OUTILS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.jpg)
21 |
AP8120177 - ELASTIQUE SUPPORT FEU More informationQuantity required : 1 |
||||||
|
22 |
Crochet batterie |
||||||
|
23 |
SUPPORT CLIGNOT. GAUCHE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
24 |
AP8120557 - CAOUTCHOUC RESERV. More informationQuantity required : 2 |
||||||
|
25 |
BOITE A OUTILS NOIRE |
||||||
|
26 |
RACORD ROBINET =8221152 |
||||||
|
27 |
PARE BOUE AVANT |
||||||
|
28 |
COQUE ARRIERE NOIR |
||||||
|
29 |
PORTE PLAQUE NOIR |
||||||
|
30 |
SUPPORT CLIGNOT. DROIT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
31 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 20 |
||||||
|
32 |
AP8112560 - CATADIOPTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
33 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
34 |
DOUILLE FIX. ARR. RESERV |
||||||
|
35 |
AP8226126 - GARDE-BOUE ARRIERE NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
36 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 20 |
||||||
|
37 |
COUVRE RESERVOIR ROUGE |
||||||
|
38 |
GRILLE COUVRE RADIATEURA |
||||||
|
39 |
JEU DECO |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/4/8/6/img/164486.jpg)
40 |
AP8120591 - RONDELLE More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/8/4/img/45284.jpg)
41 |
STIFFENING PLATE "PIAGGIO GENUINE PART" APRILIA 50 RS, AFI, TUONO, EUROPA -AP8103705- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/0/img/71480.jpg)
42 |
AP8121673 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
43 |
LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609- More informationQuantity required : 1 |
||||||
|
44 |
PLAQUE SERRURE SACOCHE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/6/img/72276.jpg)
45 |
RUBBER SPACER FOR EXHAUST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, FUTURA, RX, SX -AP8220241 More informationQuantity required : 1 |
||||||
|
46 |
Joint torique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
47 |
AP8221312 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
48 |
AP8152194 - ECROU BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
49 |
STAR WASHER (FOR LOCKS) "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250-500 2003>2012, RS 125 2011>2017, RS 50 2006>2016, SR 50 1993>2014 -AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
50 |
AP8201749 - VIS More informationQuantity required : 1 |
