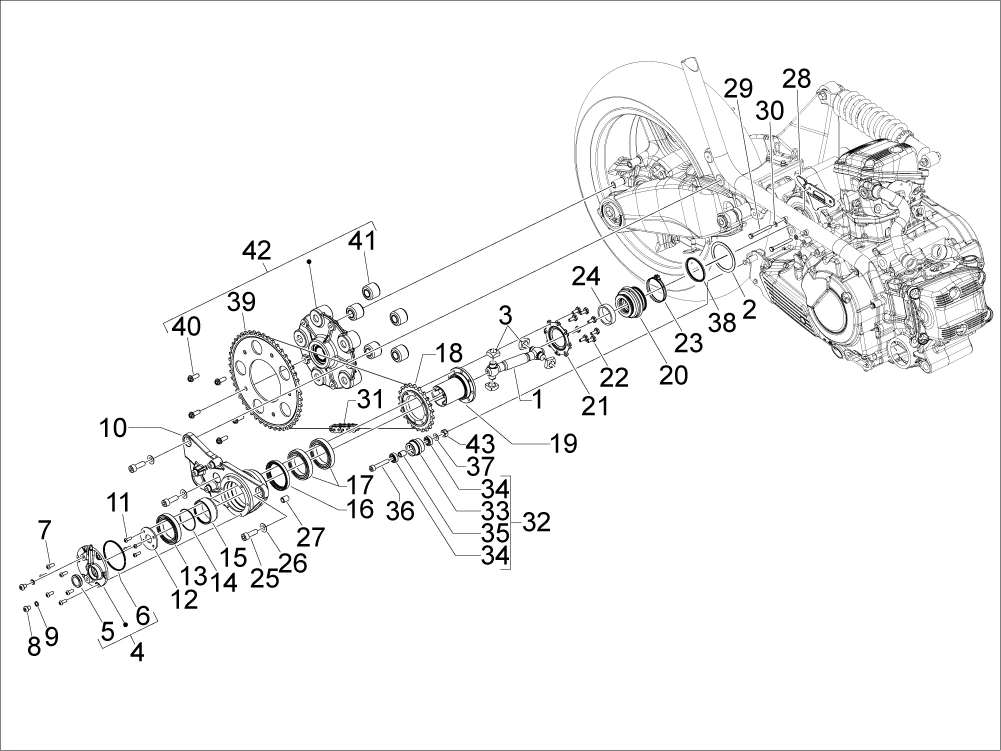

Vehicle Exploded View - GILERA GP 800 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)
Moteur : 01.26 TRANSMISSION COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/175/GP_800_2009-2011-089.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/1/7/img/70617.jpg)
1 |
CARDAN SHAFT AXLE "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -876490- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/2/img/70562.jpg)
2 |
TRANSMISSION WASHER "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA SRV 850 -874981 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/2/0/2/img/93202.jpg)
3 |
SLIDING BLOCK "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -875376- More informationQuantity required : 4 |
||||||
4 |
601550 - ABATTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/8/img/66688.jpg)
5 |
485693 - JAUGE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/5/0/4/img/67504.jpg)
6 |
TRANSMISSION GASKET RING "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 850 SRV -601552- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/8/1/img/70481.jpg)
7 |
873433 - VIS FIX. More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/9/3/img/69393.jpg)
8 |
846609 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
9 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 2 |
||||||
|
10 |
649415 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/9/img/68169.jpg)
11 |
650901 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/3/7/img/68137.jpg)
12 |
CARDAN SHAFT WASHER "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -650084 More informationQuantity required : 1 |
||||||
|
13 |
TRANSMISSION BEARING "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 850 SRV -82925R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/9/2/img/69392.jpg)
14 |
GASKET RING- FOR CARDAN SHAFT "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -846607- More informationQuantity required : 1 |
||||||
|
15 |
649427 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/9/1/img/69391.jpg)
16 |
GASKET FOR DRIVING SHAFT (58X72X8) "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -846606- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/9/img/68829.jpg)
17 |
OUTPUT TRANSMISSION BEARING "PIAGGIO GENUINE PART" GILERA 800 GP 2008>/APRILIA 850 SRV 2012> 82924R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/7/5/img/68075.jpg)
18 |
PINION "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -649484- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/9/5/img/70595.jpg)
19 |
876014 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/8/img/68108.jpg)
20 |
OIL SEAL HOOD "PIAGGIO GENUINE PART" GILERA GP 800 2007>/APRILIA 850 SRV 2012> -649928- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/7/3/img/68073.jpg)
21 |
HOOD FIXING RING FOR CARDAN SHAFT "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 650 SRV -649474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/7/img/139377.jpg)
22 |
1A000424 - VIS More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/4/3/img/68143.jpg)
23 |
HOSE CLAMP M4 "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -650153- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/4/0/img/68140.jpg)
24 |
RING FOR CARDAN SHAFT "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -650132 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/9/img/67069.jpg)
25 |
564632 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/6/6/img/109966.jpg)
26 |
006970 - RONDELLE S00697000 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
27 |
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597- More informationQuantity required : 1 |
||||||
|
28 |
649826 - PROTECTION PIGNON More informationQuantity required : 1 |
||||||
|
29 |
030062 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
30 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/7/4/img/68074.jpg)
31 |
CHAIN "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP (CLOSED) -649481 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/9/6/img/68096.jpg)
32 |
CHAIN TENSIONER WHEEL "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -6498236- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/6/img/72006.jpg)
33 |
CHAIN GUIDE ROLLER "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 125 RS, 850 SRV -AP8161074- More informationQuantity required : 1 |
||||||
|
34 |
AP8110117 - CUSCINETTO RULLO CATENA More informationQuantity required : 2 |
||||||
|
35 |
AP8161076 - DISTANZIALE RULLO CATENA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
36 |
826298 - VIS More informationQuantity required : 1 |
||||||
|
37 |
316144 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/3/9/img/68139.jpg)
38 |
SNAP RING "PIAGGIO GENUINE PART" -650103 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/7/img/68177.jpg)
39 |
REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -651095- More informationQuantity required : 1 |
||||||
|
40 |
651295 - VIS More informationQuantity required : 5 |
||||||
|
41 |
650743 - CAOUTCHOUC ELASTIQUE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/5/img/68165.jpg)
42 |
REAR CHAIN RING HUB "PIAGGIO GENUINE PART" APRILIA 850 SRV 2012>2014/GILERA 800 GP 2007>2011 -650745- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
43 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008- More informationQuantity required : 1 |
