Vehicle Exploded View - DERBI GP1 125 3ver E2 2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

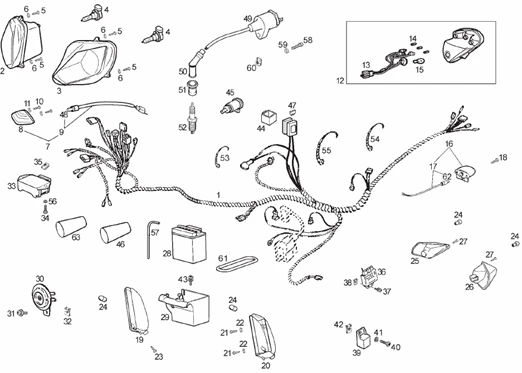

Vues éclatées : 10 CIRCUIT ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1148/GP1_125_3ver_E2_2006_(EMEA)_10.png)
1 |
00G01045301 - CTO.INSTAL.ELECTRC.GP1 250CC More informationQuantity required : 1 |
|||||||||
|
2 |
00G01026011 - OPTIQUE DR. More informationQuantity required : 1 |
|||||||||
|
2 |
00H01023011 - OPTIQUE DROIT More informationQuantity required : 1 |
|||||||||
|
3 |
00H01024011 - OPTIQUE GAUCHE More informationQuantity required : 1 |
|||||||||
|
3 |
00G01027011 - OPTIQUE GA. More informationQuantity required : 1 |
|||||||||
|
4 |
00H01002131 - AMPOULE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/1/img/64381.jpg)
4 |
LIGHT BULB H8 12V-35W "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD, RS 50, SPORT-CITY -00H01004131- More informationQuantity required : 1 |
|||||||||
|
5 |
00011031401 - VIS TARAUD 3,6X14 NOIR CL89H More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
6 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
|||||||||
|
7 |
00H05704471 - LUMIERE DE POSITION More informationQuantity required : 1 |
|||||||||
|
8 |
00H05701471 - FEU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/4/img/65004.jpg)
9 |
00H05703471 - TUBE PHARES More informationQuantity required : 1 |
|||||||||
|
10 |
00011031401 - VIS TARAUD 3,6X14 NOIR CL89H More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
11 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/7/img/64387.jpg)
12 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01011321- More informationQuantity required : 1 |
|||||||||
|
13 |
00H01003951 - FAISCEAU FEU ARRIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/1/img/64371.jpg)
14 |
00H01001371 - AMPOULE 12V.2,31W More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/1/7/0/img/48170.jpg)
15 |
BULB W16W 12V 16W "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC 2003>2008, 50 RS 2006>2010 -AP8127490- More informationQuantity required : 1 |
|||||||||
|
16 |
00G05701471 - TUBE PHARES More informationQuantity required : 1 |
|||||||||
|
17 |
00G02300581 - FEU REGISTRE More informationQuantity required : 1 |
|||||||||
|
18 |
00011031401 - VIS TARAUD 3,6X14 NOIR CL89H More informationQuantity required : 1 |
|||||||||
|
19 |
00G01706021 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
20 |
00G01706311 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
21 |
|
|||||||||
|
22 |
|
|||||||||
|
23 |
|
|||||||||
|
24 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 1 |
|||||||||
|
25 |
00G01700531 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
26 |
00G01700541 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
27 |
|
|||||||||
|
28 |
00G03304401 - BATERIA 12V.12A GP1 250CC More informationQuantity required : 1 |
|||||||||
|
29 |
00G03301551 - CAJA BATERIA GP1 250CC 05 E2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/4/img/72984.jpg)
30 |
HORN "PIAGGIO GENUINE PART" -CM071803- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
31 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
32 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/7/img/67187.jpg)
33 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5- More informationQuantity required : 1 |
|||||||||
|
34 |
00012062500 - VIS CRUXIFORME 6M100X25 More informationQuantity required : 1 |
|||||||||
|
35 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/5/img/67195.jpg)
36 |
CDI UNIT "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC, SCARABEO, SPORT-CITY -58101R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/5/1/img/64151.jpg)
37 |
SCREW - FOR IGNITION COIL FASTENING 6X20 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G06800021 More informationQuantity required : 1 |
|||||||||
|
38 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
39 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R- More informationQuantity required : 1 |
|||||||||
|
40 |
VIS T.CREUSE 5M80X15 D912/8.8 |
|||||||||
|
41 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
42 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
|||||||||
|
43 |
00D05900031 - VIS More informationQuantity required : 1 |
|||||||||
|
44 |
942577 - SUPPORT RELAIS More informationQuantity required : 1 |
|||||||||
|
45 |
00G05700641 - CONNECTEUR ALIMENTATION TELEPH More informationQuantity required : 1 |
|||||||||
|
46 |
582107 - CAPUCHON ISOLANT More informationQuantity required : 1 |
|||||||||
|
47 |
00H01002911 - FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/9/img/64379.jpg)
48 |
00H01003131 - TUBE PHARE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/6/img/67186.jpg)
49 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125 SPORT-CITY-ONE -58083R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
50 |
SPARK PLUG CAP "PIAGGIO GENUINE PART"COMMON TO ALL THE MAXISCOOTER RANGE -293845 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/8/img/66508.jpg)
51 |
436919 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/5/img/66515.jpg)
52 |
SPARK PLUG CHAMPION RG4HC "PIAGGIO GENUINE PART" COMMON TO THE RANGE -438027- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
52 |
SPARK PLUG "PIAGGIO GENUINE PART" CR8EB COMMON TO ALL THE MAXISCOOTER RANGE -638853- More informationQuantity required : 1 |
|||||||||
|
53 |
00A00900531 - COLLIER More informationQuantity required : 1 |
|||||||||
|
54 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
55 |
00F00900531 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
56 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
|||||||||
|
57 |
00H04402601 - TUBO DESVAP.BATERIA GPR 04 More informationQuantity required : 1 |
|||||||||
|
58 |
|
|||||||||
|
59 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
|||||||||
|
60 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
|||||||||
|
61 |
00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE More informationQuantity required : 1 |
|||||||||
|
62 |
00H01003131 - TUBE PHARE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
63 |
PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961 More informationQuantity required : 1 |
|||||||||
