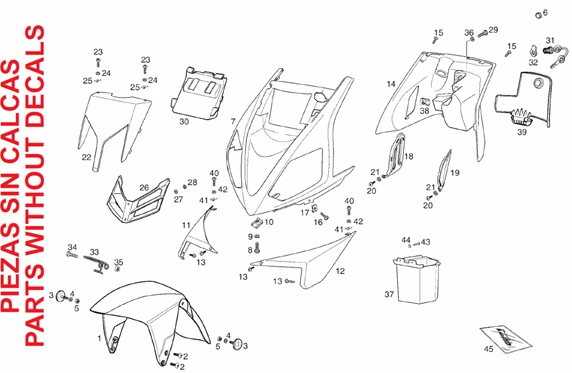

Vehicle Exploded View - DERBI GP1 50 Open 2ver E2 2006-2009 (EMEA)

	P2R reference	68022
	Maker reference	647590

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER (NEW MODEL) RAW -647590-

	P2R reference	195118
	Maker reference	94943900WA25

94943900WA25 - CARENE

	P2R reference	68022
	Maker reference	647590

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER (NEW MODEL) RAW -647590-

	P2R reference	64537
	Maker reference	00H01501701

00H01501701 - BOULON BOMBEE ALLEN 6M100X16

	P2R reference	194784
	Maker reference	00G04402751

00G04402751 - CATADIOPTRES LAT. JAUNE PRED.

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	63588
	Maker reference	000000230405

00000023040 - ECROU INDESSERABLE4M70

	P2R reference	195119
	Maker reference	862731

862731 - TAPON INTER.ESC.FRONT.GP1 OPEN

	P2R reference	195120
	Maker reference	86187400WN25

86187400WN25 - R-ESCUDO FRONT.GP1 50 OPEN NG.INT.

	P2R reference	194892
	Maker reference	00G015053525

00G015053525 - ECU FRONTAL

	P2R reference	195122
	Maker reference	86187400WB15

86187400WB15 - R-CTO.ESCD.FRON.GP1 50 BASE BLN.AJD.

	P2R reference	195123
	Maker reference	86187400WG05

86187400WG05 - TABLIER

	P2R reference	195121
	Maker reference	86187400WV05

86187400WV05 - R-CTO.ESCD.FRON.GP1 50 BASE VER.PIST.

	P2R reference	195021
	Maker reference	00G015053545

00G015053545 - R-ESCUD.FRONT.AZL.AMAR.GP1 250CC

	P2R reference	63705
	Maker reference	000121620005

00012162000 - BOULON TETE HEX.5M80X15

	P2R reference	63726
	Maker reference	000311060005

00031106000 - RONDELLE PLATE D6

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	194893
	Maker reference	00G01800021

00G01800021 - FRONTAL DR. AIR ENGAGER

	P2R reference	194894
	Maker reference	00G01800031

00G01800031 - FRONTAL GA. AIR ENGAGER

	P2R reference	194895
	Maker reference	00G04907761

00G04907761 - INTERIOR ESCUD.FRONT.GP1 250CC

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	63661
	Maker reference	000080512005

00008051200 - VIS 5X12

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	194896
	Maker reference	00G03802301

00G03802301 - GRILLE

	P2R reference	194897
	Maker reference	00G03800401

00G03800401 - GRILLE

	P2R reference
	Maker reference	031040

VIS

	P2R reference	195124
	Maker reference	862619

862619 - TAPA ESCUDO FRONT.GP1 OPEN 50CC

	P2R reference	63702
	Maker reference	000121515005

00012151500 - VIS A TETE RONDE A FENTES C

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	194899
	Maker reference	00G03803301

00G03803301 - GRILLE

	P2R reference	71410
	Maker reference	AP8120622

FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622-

	P2R reference	69844
	Maker reference	861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239-

	P2R reference	63664
	Maker reference	000080615005

00008061500 - VIS A TETE RONDE 6M100X16

	P2R reference	195125
	Maker reference	861876

861876 - REJILLA INT.ESC.FRONT.GP1 50CC OPEN

	P2R reference	64277
	Maker reference	00H00600681

LOCKS FOR REAR BOOT "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00600681

	P2R reference	187478
	Maker reference	00G00601141

00G00601141 - LEVIER FERMETURE SELLE

	P2R reference	67832
	Maker reference	639426

639426 - COLLIER

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	63726
	Maker reference	000311060005

00031106000 - RONDELLE PLATE D6

	P2R reference	194902
	Maker reference	00G01503681

00G01503681 - CAJA MALETA ESCD.FRONT.GP1 250

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	194903
	Maker reference	00G05911911

00G05911911 - TAPA MALETA ESCD.FRONT.GP1 250

	P2R reference	63702
	Maker reference	000121515005

00012151500 - VIS A TETE RONDE A FENTES C

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	195128
	Maker reference	86182000WN2

86182000WN2 - R-CTO.KIT CALCAS GP1 OPEN NG.INT.¦06

	P2R reference	195130
	Maker reference	86182000WV0

86182000WV0 - R-CTO.KIT CALCAS GP1 OPEN VER.PIST.¦06

	P2R reference	195129
	Maker reference	86440200WA2

86440200WA2 - R-CTO.KIT CALCAS GP1 OPEN AZL.AMR.¦07

	P2R reference	195127
	Maker reference	86182000WB1

86182000WB1 - R-CTO.KIT CALCAS GP1 OPEN BL.AJD.¦06

	P2R reference	195126
	Maker reference	86414500WG0

86414500WG0 - R-CTO.KIT CALCAS GP1 50CC MALOSSI 07

	P2R reference	195288
	Maker reference	866510

866510 - R-JUEGO CALCAS GP1 50CC OPEN MY09 NEGRO
