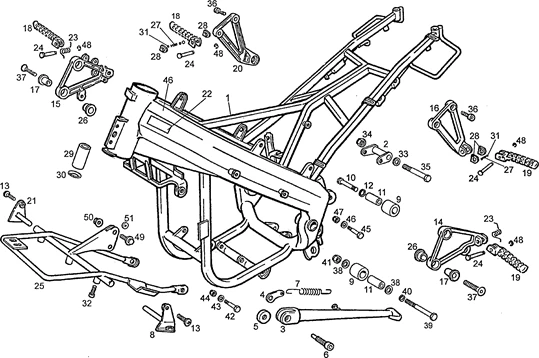

Châssis - parties plastiques - carrosseries : 1 CHÂSSIS - BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1116/GPR_50_R_1997-2000_EXPORT_1.png)
1 |
00H00118011 - S/ENSEMBLE CADRE GRIS CHROME G More informationQuantity required : 1 |
||||||
|
1 |
|
||||||
|
1 |
00H00118011 - S/ENSEMBLE CADRE GRIS CHROME G More informationQuantity required : 1 |
||||||
|
1 |
00H01928602 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
|
||||||
|
2 |
00H00102961A - S/ENSEMBLE SUPPORT ARRI¤RE MOT More informationQuantity required : 1 |
||||||
|
3 |
00H00813011 - S/ENSEMBLE BEQUILLE GRIS ZIRCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
4 |
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468- More informationQuantity required : 1 |
||||||
|
5 |
00H00801431 - DOUILLE BUTFE BEQUILLE GPR"R" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/3/img/64313.jpg)
6 |
00H00803071 - VIS FIXATION BEQUILLE GPR-50"R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/4/img/64314.jpg)
7 |
00H00803081 - RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
|
8 |
00H02200481 - ENSEMBLE GOUSSET GAUCHE FIXA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/4/img/64614.jpg)
9 |
CHAIN GUIDE WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01801771 More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/1/img/63631.jpg)
11 |
SPACER- FOR CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002518790- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/9/img/63639.jpg)
12 |
00003306570 - RONDELLE FIX BOITE A OUTILS More informationQuantity required : 1 |
||||||
|
13 |
00000012620 - VIS More informationQuantity required : 1 |
||||||
|
14 |
00H00104672 - SUPPORT GAUCHE OTRIER GRIS CHR More informationQuantity required : 1 |
||||||
|
15 |
00H00104702 - SUPPORT AVANT DROITE OTRIER GR More informationQuantity required : 1 |
||||||
|
16 |
00H01500122 - SUPPORT ARRI¤RE GAUCHE OTRIER. More informationQuantity required : 1 |
||||||
|
17 |
00H01500171 - DOUILLE FIXATION SUPPORT FTRIE More informationQuantity required : 1 |
||||||
|
18 |
00H01502091 - ETRIER DROITE GPR-50"R" More informationQuantity required : 1 |
||||||
|
19 |
00H01502451 - FTRIER GAUCHE GPR-50"R" More informationQuantity required : 1 |
||||||
|
20 |
00H01503542 - SUPPORT ARRI¤RE DROITE OTRIER More informationQuantity required : 1 |
||||||
|
21 |
00H02202451 - S/ENSEMBLE GOUSSET DROIT FIXAT More informationQuantity required : 1 |
||||||
|
22 |
00H01827101 - PLAQUE CONSTRUCTEUR More informationQuantity required : 1 |
||||||
|
22 |
00H01828101 - PLAQUE CONSTRUCTEUR More informationQuantity required : 1 |
||||||
|
22 |
00H01838101 - PLACA FABRICANTE GPR-50 R HOLA More informationQuantity required : 1 |
||||||
|
23 |
00H04901291 - RESSORT FIXATION FTRIER GPR-50 More informationQuantity required : 1 |
||||||
|
24 |
00H04901311 - AXE ARTICULATION FTRIER GPR-50 More informationQuantity required : 1 |
||||||
|
25 |
00H04901181 - S/ENSEMBLE SUPPORT INSTRUMENTS More informationQuantity required : 1 |
||||||
|
26 |
00H04901401 - BLOC SUPPORT ETRIER GPR- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/1/img/64951.jpg)
27 |
00H04902291 - RESSORT FIXATION FTRIER PASSAG More informationQuantity required : 1 |
||||||
|
28 |
00H04902401 - SUPPORT FIXATION OTRIER PASSAG More informationQuantity required : 1 |
||||||
|
29 |
00H06300401 - TUBE SEPARATION ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/8/img/65048.jpg)
30 |
00H06500451 - RONDELLE COUSSINET TUBE DIRECT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/8/img/63608.jpg)
31 |
00000061061 - BILLE DIAMETRE 6. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
32 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/2/7/img/64527.jpg)
33 |
00H01500421 - RONDELLE FIXATION INFERIEUR AM More informationQuantity required : 1 |
||||||
|
34 |
00000023120 - ECROU IDESSERABLE 12M150 More informationQuantity required : 1 |
||||||
|
35 |
00004111000 - VIS C/ALLEN 12M150X100. D-912. More informationQuantity required : 1 |
||||||
|
36 |
00000004820 - BOULON TETE HEX. 8M125X20 More informationQuantity required : 1 |
||||||
|
37 |
00000013840 - VIS AVANT ALLEN 8M125X40. D-79 More informationQuantity required : 1 |
||||||
|
38 |
00H00500211 - RONDELLE More informationQuantity required : 1 |
||||||
|
39 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
40 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
41 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
42 |
00H03000271 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
43 |
00000031100 - RONDELLE More informationQuantity required : 1 |
||||||
|
44 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/4/img/64704.jpg)
45 |
SCREW - ENGINE FIXING SCREW M8 "PIAGGIO GENUINE PART" 50 VESPA LX, PRIMAVERA, SPRINT/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02500272- More informationQuantity required : 1 |
||||||
|
46 |
00H06309731 - ADHESIF More informationQuantity required : 1 |
||||||
|
47 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
48 |
CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400- More informationQuantity required : 1 |
||||||
|
49 |
|
||||||
|
50 |
00026006000 - ECROU 6M100. More informationQuantity required : 1 |
||||||
|
51 |
BOULON S03105900 |
