Vehicle Exploded View - DERBI GPR 50 cc RACING 2006 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

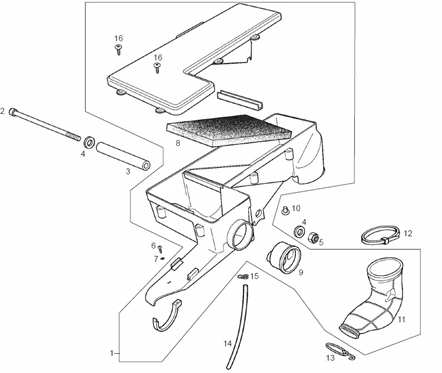

Moteur : 15 BOÎTE FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1117/GPR_50cc_RACING_2006_E2_2ed_15.png)
1 |
00H01810541 - CORPS FILTRE More informationQuantity required : 1 |
||||||
|
2 |
00H06301171 - VIS More informationQuantity required : 1 |
||||||
|
3 |
00H00500251 - ENTRETOISE DE ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/4/6/img/63946.jpg)
4 |
00G00803101 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
5 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
6 |
00011941300 - VIS More informationQuantity required : 1 |
||||||
|
7 |
00031105000 - RONDELLE PLATE M5 DIN125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/6/9/img/64769.jpg)
8 |
AIR FILTER FOAM "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H03208251- More informationQuantity required : 1 |
||||||
|
9 |
00H01800621 - DIAPFRAGME AIR More informationQuantity required : 1 |
||||||
|
10 |
00H06400101 - BOUCHON More informationQuantity required : 1 |
||||||
|
11 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010 -00H03209261- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
12 |
00F00900531 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
13 |
CLAMP FOR AIRBOX JUNCTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G03204272- More informationQuantity required : 1 |
||||||
|
14 |
00H03702461 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/9/img/64809.jpg)
15 |
HOSE CLAMP FOR BRAKE TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03700131- More informationQuantity required : 1 |
||||||
|
16 |
00011031801 - VIS TARAUD 3,6X18 NOIR CL89H More informationQuantity required : 1 |
