Vehicle Exploded View - DERBI GPR 50 GPR R 50cc REPLICA MALOSSI 2007 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

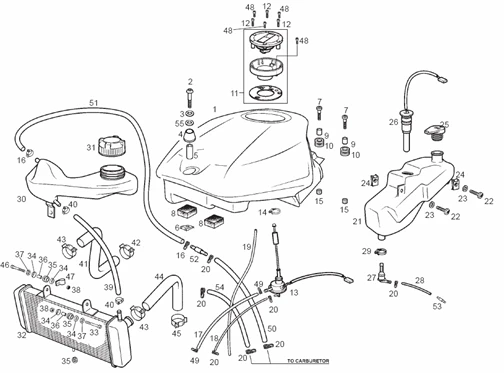

Tables : 4 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1121/GPR_R_50cc_REPLICA_MALOSSI_2007_E2_2ver_4.png)
1 |
20H00409011 - DPSTO.GASOLINA BLNC.P/P GPR 04 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/8/img/63668.jpg)
2 |
00008064500 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/5/img/63595.jpg)
3 |
00000031070 - RONDELLE PLATE D7,3X13,8MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/5/img/64245.jpg)
4 |
00H00402581 - PUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/6/img/64546.jpg)
5 |
00H01504051 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
7 |
AP8150165 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
8 |
890512 - EPONGE ADHESIVE 15X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/8/img/63958.jpg)
9 |
00G01001821 - ENTRETOISE SUPPORT DE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/8/img/64248.jpg)
10 |
00H00403581 - PUFFER More informationQuantity required : 1 |
||||||
|
11 |
00H00402131 - ENS.BOUCHON RESERV.ESSENCE V.B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/5/img/63615.jpg)
12 |
00002053051 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/5/9/img/65059.jpg)
13 |
FUEL TAP "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H10408181- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
14 |
00G00400501 - COLLIER More informationQuantity required : 1 |
||||||
|
15 |
00H04400711 - ECROU More informationQuantity required : 1 |
||||||
|
16 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
|
17 |
00H00406321 - TUYAU More informationQuantity required : 1 |
||||||
|
18 |
00G06201061 - TUYAU More informationQuantity required : 1 |
||||||
|
19 |
00H06202061 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
20 |
00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/9/img/64829.jpg)
21 |
00H03706081 - RESERVOIR HUILE More informationQuantity required : 1 |
||||||
|
22 |
00092063514 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
23 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
||||||
|
24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/1/img/64821.jpg)
25 |
OIL TANK CAP "PIAGGIO GENUINE PART" GILERA 125 SC/APRILIA 50 RS 2006>2010 -00H03702061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/5/img/64825.jpg)
26 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 125 SC -00H03704051- More informationQuantity required : 1 |
||||||
|
27 |
00H03701411 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/8/img/64808.jpg)
28 |
PIPE - FROM TAP TO PUMP "PIAGGIO GENUINE PARTS" APRILIA 50 RS, RX, SX 2006>2010 -00H03700111 More informationQuantity required : 1 |
||||||
|
29 |
00G00400501 - COLLIER More informationQuantity required : 1 |
||||||
|
30 |
EXPANSION TANK "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010/GILERA 125 SC -00H03803501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/8/img/64858.jpg)
31 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 RS, SX, RX -00H03802472- More informationQuantity required : 1 |
||||||
|
32 |
86201R - RADIATEUR More informationQuantity required : 1 |
||||||
|
33 |
00002064011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/3/img/63883.jpg)
34 |
00D01500552 - CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
35 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
36 |
SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471- More informationQuantity required : 1 |
||||||
|
37 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
38 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
39 |
00H03803491 - TUYAU More informationQuantity required : 1 |
||||||
|
40 |
00H03801701 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/6/9/img/64869.jpg)
41 |
HOSE-FROM COLLANT TANK TO RADIATOR "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H03807041- More informationQuantity required : 1 |
||||||
|
42 |
00H03801751 - ABRAZ.NORMA COBRA 22/8 W4 More informationQuantity required : 1 |
||||||
|
43 |
00H03802091 - COLLIER More informationQuantity required : 1 |
||||||
|
44 |
00H03813021 - TUYAU More informationQuantity required : 1 |
||||||
|
45 |
00H03802751 - COLLIER More informationQuantity required : 1 |
||||||
|
46 |
00000004645 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
47 |
FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454 More informationQuantity required : 1 |
||||||
|
48 |
00002051251 - VIS A TETE CREUSE 5M80X12 N More informationQuantity required : 1 |
||||||
|
49 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/3/img/64853.jpg)
50 |
COOLANT HOSE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03801961 More informationQuantity required : 1 |
||||||
|
51 |
00H03807491 - TUYAU More informationQuantity required : 1 |
||||||
|
52 |
00H03800861 - RACCORD TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/9/8/img/64098.jpg)
53 |
00G03701031 - RACCORD ENTREE DIHUILE More informationQuantity required : 1 |
||||||
|
54 |
COOLANT HOSE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03801961 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/0/img/63640.jpg)
55 |
00003515370 - RONDELLE FIXATION COUVRE-CHAIN More informationQuantity required : 1 |
