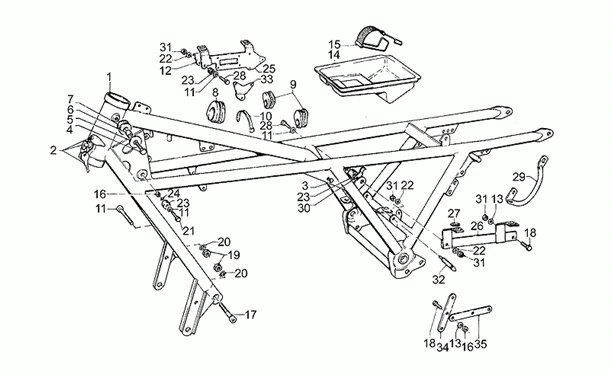

Chassis : 33.13 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/495/Le_Mans_III_850_1981-1984_33.13.PNG)
1 |
CADRE |
||||||
|
2 |
Serrure blocage direction |
||||||
|
3 |
GU93180080 - BOUCHON More informationQuantity required : 4 |
||||||
|
4 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
5 |
AP8150017 - RONDELLE More informationQuantity required : 2 |
||||||
|
6 |
GU91180810 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/6/img/129206.jpg)
7 |
GU14103400 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
8 |
GU14107100 - TAMPON More informationQuantity required : 1 |
||||||
|
9 |
Caoutchouc |
||||||
|
10 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 3 |
||||||
|
11 |
GU95100123 - RONDELLE More informationQuantity required : 4 |
||||||
|
12 |
GU17750400 - PLAQUE More informationQuantity required : 1 |
||||||
|
13 |
GU95000206 - RONDELLE More informationQuantity required : 5 |
||||||
|
14 |
|
||||||
|
15 |
|
||||||
|
16 |
GU92601206 - ECROU More informationQuantity required : 2 |
||||||
|
17 |
GU98623630 - VIS TCEI M12X30 More informationQuantity required : 2 |
||||||
|
18 |
GU98052325 - VIS More informationQuantity required : 3 |
||||||
|
19 |
GU92602312 - ECROU More informationQuantity required : 2 |
||||||
|
20 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
21 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
22 |
GU95000206 - RONDELLE More informationQuantity required : 7 |
||||||
|
23 |
GU14103800 - TAMPON More informationQuantity required : 4 |
||||||
|
24 |
Rondelle évent. |
||||||
|
25 |
|
||||||
|
26 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/9/img/131889.jpg)
27 |
GU39461600 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
28 |
|
||||||
|
29 |
|
||||||
|
30 |
GU933011755 - CAVALIER More informationQuantity required : 1 |
||||||
|
31 |
GU92630106 - ECROU M6X1 More informationQuantity required : 6 |
||||||
|
32 |
Goujon |
||||||
|
33 |
|
||||||
|
34 |
PLAQUETTE |
||||||
|
35 |
|
