Vehicle Exploded View - APRILIA MINI RX 50 Challenge 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

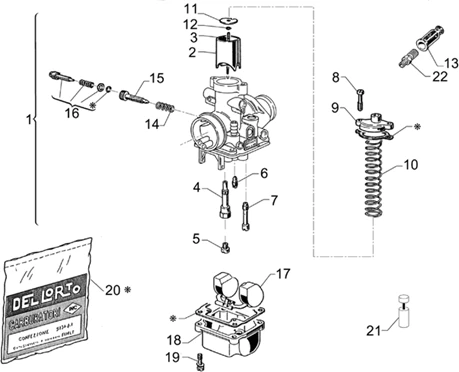

Moteur : 29.07 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/297/Mini_RX_Challenge_2003_29.07.PNG)
1 |
Carburateur cpl. |
||||||
|
2 |
Soupape gaz |
||||||
|
3 |
Pointeau conique |
||||||
|
4 |
Gicleur |
||||||
|
5 |
Jet maximum |
||||||
|
6 |
Gicleur minimum |
||||||
|
7 |
Jet démarrage |
||||||
|
8 |
Vis |
||||||
|
9 |
Couvercle |
||||||
|
10 |
Ressort soupape gaz |
||||||
|
11 |
Arrêt point.conique |
||||||
|
12 |
Arrêtoir |
||||||
|
13 |
Capuchon |
||||||
|
14 |
Ressort |
||||||
|
15 |
VITE REGOLAZIONE MINIMO |
||||||
|
16 |
Vis |
||||||
|
17 |
Flotteur |
||||||
|
18 |
Cuve |
||||||
|
19 |
Vis |
||||||
|
20 |
Sachet joints |
||||||
|
21 |
Commande starter |
||||||
|
22 |
Vis |
