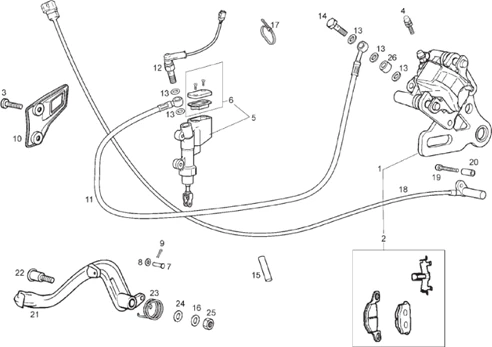

Cadre : 66.11 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1112/Mulhacen_125_4T_E3_2010_(EMEA)_66.11.png)
1 |
865512 - PINCE FREIN More informationQuantity required : 0 |
||||||
|
2 |
864428 - KIT PLAQUETTES More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
4 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123 More informationQuantity required : 0 |
||||||
|
5 |
864110 - POMPE FREIN ARRIERE More informationQuantity required : 0 |
||||||
|
6 |
864425 - COUVERCLE More informationQuantity required : 0 |
||||||
|
7 |
864407 - PIVOT More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
8 |
FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622- More informationQuantity required : 0 |
||||||
|
9 |
|
||||||
|
10 |
863552 - TAPA BOMBA FRENO TRAS.MUL125 More informationQuantity required : 0 |
||||||
|
11 |
864427 - TUYAU More informationQuantity required : 0 |
||||||
|
12 |
864426 - RACCORD More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
13 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
14 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/6/1/img/70061.jpg)
15 |
864587 - PROTECTOR GUIA CABLES MUL125 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
16 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
17 |
00F00900531 - COLLIER More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/2/5/img/70025.jpg)
18 |
SPEED SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT 2011>, RCR 2011>/APRILIA 50 SX 2011>, RX 2011> -863307 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/7/img/63667.jpg)
19 |
00008063500 - BOULON.6M100X35. More informationQuantity required : 0 |
||||||
|
20 |
864826 - CASQ.TOPE CAPTADOR MUL125 CAFE More informationQuantity required : 0 |
||||||
|
21 |
865585 - SCTO.PALANCA FRENO TRAS. More informationQuantity required : 0 |
||||||
|
22 |
00H01103171 - VIS More informationQuantity required : 0 |
||||||
|
23 |
863454 - RESSORT More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/5/img/63655.jpg)
24 |
SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
25 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 0 |
||||||
|
26 |
865511 - R-CASQUILLO RACORD MULHACEN CAFE 125CC More informationQuantity required : 0 |
