Vehicle Exploded View - MOTO-GUZZI NEVADA 350 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

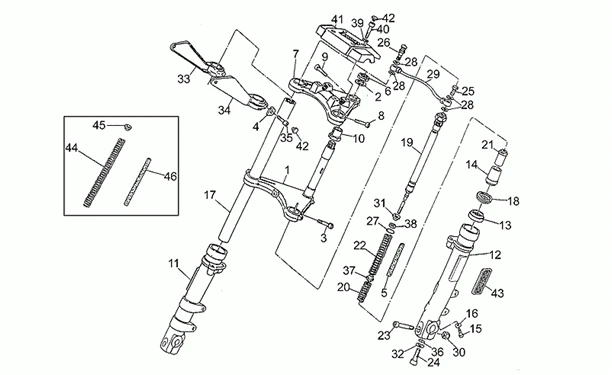

Chassis : 33.26 SUSPENSION AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/497/Nevada_350_1993-1997_33.26.PNG)
1 |
T DE FOURCHE |
||||||
|
2 |
GU18513560 - RONDELLE BOUCHON FOURREAU More informationQuantity required : 1 |
||||||
|
3 |
GU98612535 - VIS More informationQuantity required : 2 |
||||||
|
4 |
GU23497910 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
TUYAU AV |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/3/6/img/129436.jpg)
6 |
NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, 1000 LE-MANS, GT, CALIFORNIA -GU18513460- More informationQuantity required : 1 |
||||||
|
7 |
T.DE FOURCHE |
||||||
|
8 |
GU98610540 - VIS More informationQuantity required : 2 |
||||||
|
9 |
GU98612535 - VIS More informationQuantity required : 1 |
||||||
|
10 |
GU18516660 - DOUILLE ET PIGNON More informationQuantity required : 1 |
||||||
|
11 |
BAS DE FOURCHE |
||||||
|
12 |
BAS DE FOURCHE |
||||||
|
13 |
GU90403857 - JOINT SPI More informationQuantity required : 2 |
||||||
|
14 |
GU20527620 - DOUILLE More informationQuantity required : 2 |
||||||
|
15 |
GU98622320 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU95100116 - RONDELLE More informationQuantity required : 4 |
||||||
|
17 |
GU23525470 - TUBE DE FOURCHE More informationQuantity required : 2 |
||||||
|
18 |
GU31524550 - CACHE POUSSIERE More informationQuantity required : 2 |
||||||
|
19 |
AMORTISSEUR FOURCHE |
||||||
|
20 |
GU23526610 - RESSORT More informationQuantity required : 2 |
||||||
|
21 |
GU28527540 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
22 |
GU23526910 - RESSORT More informationQuantity required : 2 |
||||||
|
23 |
GU98620545 - VIS More informationQuantity required : 2 |
||||||
|
24 |
GU98622530 - VIS More informationQuantity required : 2 |
||||||
|
25 |
GU28556450 - VIS PERCEE More informationQuantity required : 1 |
||||||
|
26 |
GU28556250 - SOUPAPE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/3/img/132233.jpg)
27 |
GU90706282 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
28 |
GU28556350 - RONDELLE EN CUIVRE More informationQuantity required : 4 |
||||||
|
29 |
GU19529660 - TUYAU AMORTISSEUR AV More informationQuantity required : 1 |
||||||
|
30 |
GU92602210 - ECROU More informationQuantity required : 2 |
||||||
|
31 |
RONDELLE |
||||||
|
32 |
GU27499120 - RONDELLE More informationQuantity required : 2 |
||||||
|
33 |
SUPPORT DE PHARE |
||||||
|
34 |
SUPPORT DE PHARE |
||||||
|
35 |
GU98622425 - VIS M8X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/8/3/7/img/125837.jpg)
36 |
ROCKER AXLE O'RING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI (2 VALVES ENGINE) -GU90706094 More informationQuantity required : 2 |
||||||
|
37 |
GU23527910 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
38 |
GU92602308 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
39 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
40 |
GU98680435 - VIS TCEI M8X35 More informationQuantity required : 4 |
||||||
|
41 |
GU23500210 - PLAQUE FIXATION GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
42 |
STEERING COLUMN CAP "PIAGGIO GENUINE PART" MOTO GUZZI BELLAGIO 940 2007>2013, BREVA 750 2003>2009, CALIFORNIA 1994>2012, NEVADA 1992>2013 -GU23943410 More informationQuantity required : 6 |
||||||
|
43 |
GU31781665 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
||||||
|
44 |
GU27526620 - RESSORT More informationQuantity required : 2 |
||||||
|
45 |
GU23526510 - DOUILLE More informationQuantity required : 2 |
||||||
|
46 |
|
