Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

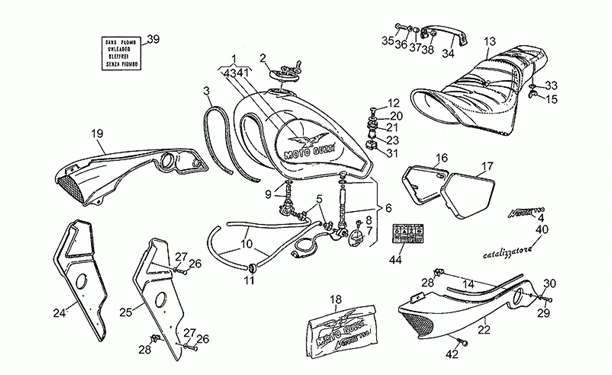

Chassis : 33.06 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/499/Nevada_750_1993-1997_33.06.PNG)
1 |
GU311002651 - RESERVOIR More informationQuantity required : 1 |
||||||
|
1 |
RESERVOIR |
||||||
|
1 |
GU31100270 - RESERVOIR More informationQuantity required : 1 |
||||||
|
1 |
GU31100271 - RESERVOIR More informationQuantity required : 1 |
||||||
|
1 |
RESERVOIR |
||||||
|
1 |
RESERVOIR |
||||||
|
1 |
RESERVOIR |
||||||
|
1 |
RESERVOIR |
||||||
|
1 |
|
||||||
|
2 |
Bouchon réservoir essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
3 |
2B000909 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
DECALCOMANIE D |
||||||
|
4 |
GU31922066 - DECALCOMANIE D More informationQuantity required : 2 |
||||||
|
4 |
GU31922067 - DECALCOMANIE D More informationQuantity required : 2 |
||||||
|
5 |
GU93305017 - COLLIER More informationQuantity required : 2 |
||||||
|
6 |
GU31105460 - ROBINET More informationQuantity required : 1 |
||||||
|
7 |
DOUILLE |
||||||
|
8 |
GU98200306 - VIS More informationQuantity required : 2 |
||||||
|
9 |
ROBINET |
||||||
|
10 |
GU00823956080 - T SAE J30 R7 8X14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133.jpg)
11 |
GU28157950 - COLLIER More informationQuantity required : 4 |
||||||
|
12 |
Vis sup. |
||||||
|
13 |
SELLA COMPLETA DI FISSAGGIO |
||||||
|
13 |
|
||||||
|
14 |
2B000909 - JOINT More informationQuantity required : 1 |
||||||
|
15 |
GU92670206 - ECROU More informationQuantity required : 2 |
||||||
|
16 |
GU234762101 - COUVERCLE BATTERIE More informationQuantity required : 1 |
||||||
|
16 |
COUVERCLE BATTERIE |
||||||
|
16 |
COUVERCLE BATTERIE |
||||||
|
16 |
COUVERCLE BATTERIE |
||||||
|
16 |
COUVERCLE BATTERIE |
||||||
|
16 |
COUVERCLE BATTERIE |
||||||
|
16 |
COUVERCLE BATTERIE |
||||||
|
17 |
GU234763101 - COUVERCLE BATTERIE More informationQuantity required : 1 |
||||||
|
17 |
COUVERCLE BATTERIE |
||||||
|
17 |
COUVERCLE BATTERIE |
||||||
|
17 |
COUVERCLE BATTERIE |
||||||
|
17 |
COUVERCLE BATTERIE |
||||||
|
17 |
COUVERCLE BATTERIE |
||||||
|
17 |
COUVERCLE BATTERIE |
||||||
|
18 |
KIT DE DECALCOMANIES |
||||||
|
18 |
|
||||||
|
18 |
KIT DE DECALCOMANIES |
||||||
|
19 |
COTE |
||||||
|
20 |
GU95100256 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/7/img/132367.jpg)
21 |
GU91551131 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
22 |
GU31570765 - COTE More informationQuantity required : 1 |
||||||
|
23 |
GU31103565 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
24 |
CLOISON AV |
||||||
|
25 |
GU31575465 - CLOISON AV More informationQuantity required : 1 |
||||||
|
26 |
GU98230620 - VIS More informationQuantity required : 4 |
||||||
|
27 |
GU95001206 - RONDELLE More informationQuantity required : 4 |
||||||
|
28 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 8 |
||||||
|
29 |
GU98230626 - VIS 6X25 More informationQuantity required : 2 |
||||||
|
30 |
GU95100123 - RONDELLE More informationQuantity required : 4 |
||||||
|
31 |
GU92660801 - ECROU EN CAGE More informationQuantity required : 1 |
||||||
|
33 |
GU93110082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
34 |
|
||||||
|
35 |
GU98326016 - VIS More informationQuantity required : 2 |
||||||
|
36 |
GU95100142 - RONDELLE More informationQuantity required : 2 |
||||||
|
37 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/0/7/img/127207.jpg)
38 |
GU92630207 - ECROU More informationQuantity required : 2 |
||||||
|
39 |
GU29995735 - DECALCOMANIE More informationQuantity required : 2 |
||||||
|
40 |
DECALCOMANIE D |
||||||
|
41 |
GU19917535 - "DEC.""MOTOGUZZI"" OR/NOIRE" More informationQuantity required : 1 |
||||||
|
41 |
"Décalco ""Moto Guzzi""" |
||||||
|
41 |
"Déc.d.""Moto Guzzi"" or/noire" |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
42 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE-GUZZI -672380 More informationQuantity required : 2 |
||||||
|
43 |
DECALCOMANIE D |
||||||
|
43 |
DECALCOMANIE D |
||||||
|
43 |
DECALCOMANIE D |
||||||
|
44 |
GU31945467 - DECALCOMANIE D More informationQuantity required : 1 |
