Vehicle Exploded View - GILERA NEXUS 125 ie E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

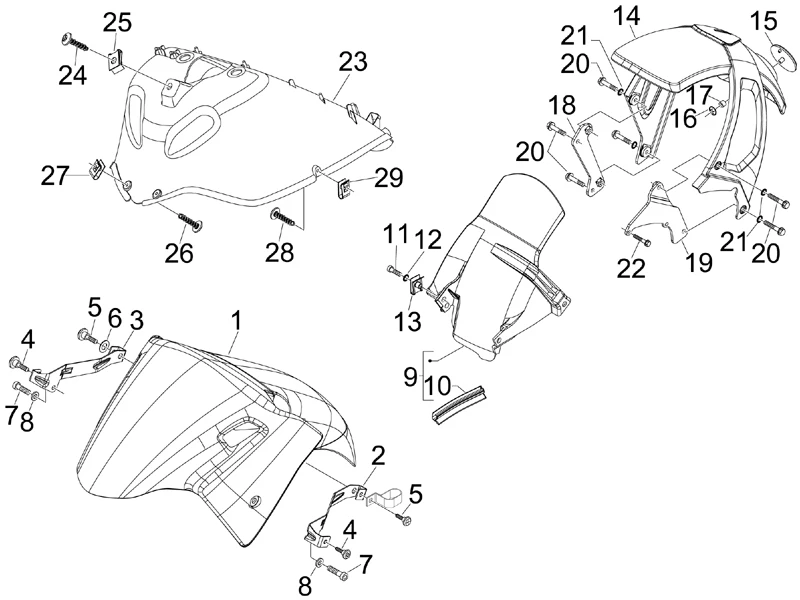

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/178/Nexus_125_ie_E3_2008-118.png)
1 |
650226 - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
|
1 |
65022600EV - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
|
1 |
65022600ND - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
|
1 |
65022600R7 - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
|
2 |
650469 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
3 |
650467 - PLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
4 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
|||||||||
|
6 |
013762 - RONDELLE S01376200 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
7 |
709099 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
8 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/0/6/img/68206.jpg)
9 |
REAR SPLASH GUARD "PIAGGIO GENUINE PART" GILERA 125-250-300 NEXUS, 125 RUNNER -652976 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/4/8/img/73348.jpg)
10 |
REAR MUDGUARD GASKET "PIAGGIO GENUINE PART" GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX -CM175101 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/7/img/65397.jpg)
11 |
015804 - VIS More informationQuantity required : 1 |
|||||||||
|
12 |
006976 - RONDELLE S00697600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
|||||||||
|
14 |
624640 - GARDE BOUE AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/9/img/67269.jpg)
15 |
REAR REFLECTOR "PIAGGIO GENUINE PART" 50 VESPA PRIMAVERA, SPRINT, FLY, NRG/GILERA 125-250-300 NEXUS -582922- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/6/img/65796.jpg)
16 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -180859 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/6/img/66586.jpg)
17 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER -479882- More informationQuantity required : 1 |
|||||||||
|
18 |
624515 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
19 |
624514 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
20 |
018639 - VIS More informationQuantity required : 6 |
|||||||||
|
21 |
006976 - RONDELLE S00697600 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
22 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
|||||||||
|
23 |
657049 - GARDE BOUE INT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
24 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 1 |
|||||||||
|
25 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
26 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
27 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
|||||||||
|
28 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 4 |
|||||||||
|
29 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
