Vehicle Exploded View - GILERA NEXUS 300 ie E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

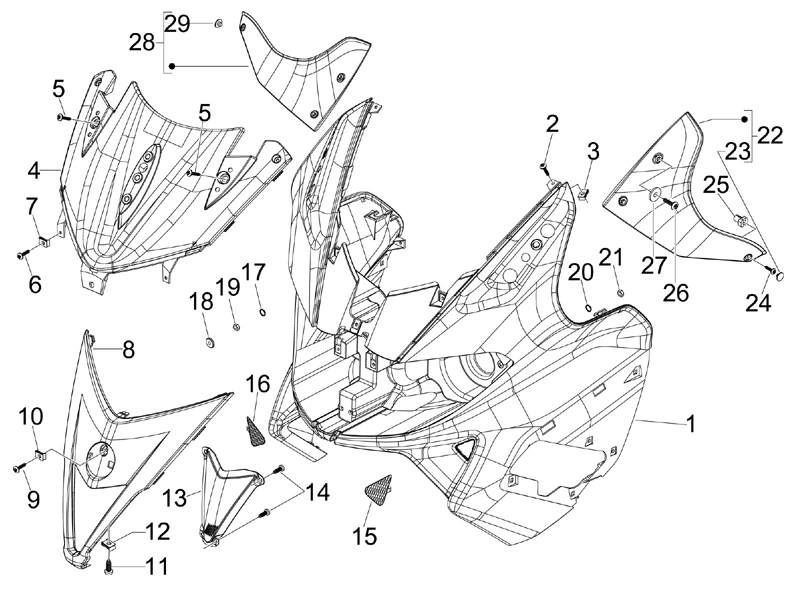

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/183/Nexus_300_ie_E3_2008-088.png)
1 |
624503 - TABLIER AV BRUT More informationQuantity required : 1 |
||||||
|
1 |
62450300EV - TABLIER AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/5/8/img/85258.jpg)
1 |
FRONT SHIELD "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS BLACK GRAFITE 79/A -62450300ND- More informationQuantity required : 1 |
||||||
|
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS RED 894 -62450300R7- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
4 |
ENCADREMENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/1/4/img/71014.jpg)
4 |
UPPER FRONT RIM "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975051000G- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
5 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
6 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
8 |
62436900EV - ENCADREMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/4/9/img/85049.jpg)
8 |
HORN COVER "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS BLACK 79/A -62436900ND- More informationQuantity required : 1 |
||||||
|
8 |
62436900R7 - ENCADREMENT More informationQuantity required : 1 |
||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
|
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
|
12 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/6/4/img/85264.jpg)
13 |
FRONT FRAME GRILLE "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS -624512 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 4 |
||||||
|
15 |
975725 - GRILLE GAU. More informationQuantity required : 1 |
||||||
|
16 |
975726 - GRILLE DRO. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/1/img/66181.jpg)
17 |
287223 - CIRCLIPS More informationQuantity required : 3 |
||||||
|
18 |
599284 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
19 |
020206 - ECROU S02020600 More informationQuantity required : 3 |
||||||
|
20 |
287223 - CIRCLIPS More informationQuantity required : 4 |
||||||
|
21 |
020206 - ECROU S02020600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/1/3/img/87413.jpg)
22 |
LEFT HAND GUARD - "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS BRUT A PEINDRE -652848- More informationQuantity required : 1 |
||||||
|
22 |
65284800EV - COUVERTURE CACHE GUIDON GAU More informationQuantity required : 1 |
||||||
|
22 |
65284800ND - COUVERTURE CACHE GUIDON GAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/2/0/img/87420.jpg)
22 |
LEFT HAND GUARD - "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS ROUGE 894 -65284800R7- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
23 |
293717 - BOUCHON More informationQuantity required : 1 |
||||||
|
24 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
25 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/5/img/67625.jpg)
26 |
620365 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/6/img/66076.jpg)
27 |
269134 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/2/2/img/87422.jpg)
28 |
RIGHT HAND GUARD - "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS RAW TO BE PAINTED -652849 More informationQuantity required : 1 |
||||||
|
28 |
65284900EV - COUVERTURE CACHE GUIDON DR. More informationQuantity required : 1 |
||||||
|
28 |
RIGHT HAND GUARD - "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS BLACK 79/A -65284900ND- More informationQuantity required : 1 |
||||||
|
28 |
RIGHT HAND GUARD - "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS RED 894 -65284900R7- More informationQuantity required : 1 |
||||||
|
29 |
293717 - BOUCHON More informationQuantity required : 1 |
