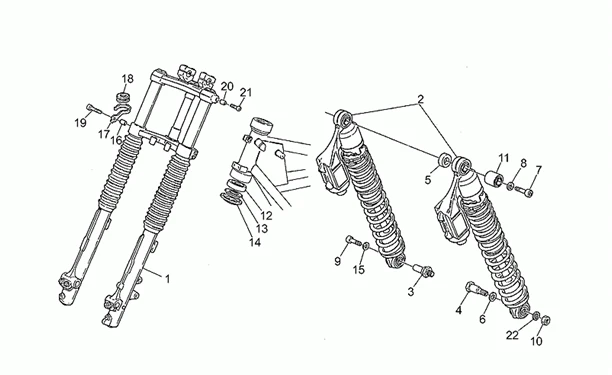

Chassis : 33.20 SUSPENSION AVANT/ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/510/NTX_650_1987-1990_33.20.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
|
||||||
|
2 |
|
||||||
|
3 |
GU23555281 - AXE More informationQuantity required : 1 |
||||||
|
4 |
GU23555280 - AXE More informationQuantity required : 1 |
||||||
|
5 |
GU91181407 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
GU95007210 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
8 |
GU95007208 - RONDELLE More informationQuantity required : 2 |
||||||
|
9 |
|
||||||
|
10 |
GU92602411 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
12 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI BREVIA, BELLAGIO, CALIFORNIA -GU92249225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
13 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
14 |
STEERING DUST COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU14517000 More informationQuantity required : 2 |
||||||
|
15 |
GU95100256 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
ENTRETOISE |
||||||
|
17 |
SUPPORT TUYAU |
||||||
|
18 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
19 |
GU98620335 - VIS M6X35 More informationQuantity required : 1 |
||||||
|
20 |
GU91180802 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
21 |
GU98620440 - VIS M8X40 More informationQuantity required : 1 |
||||||
|
22 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 1 |
