Vehicle Exploded View - GILERA OREGON 250 CC 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

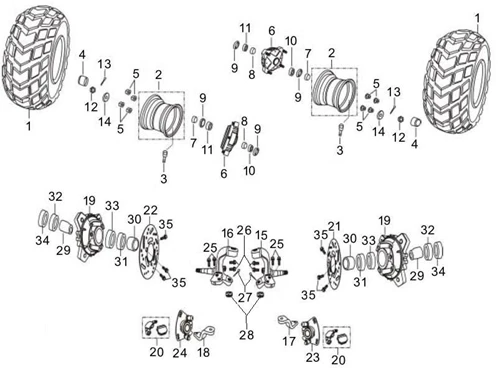

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/188/Oregon_250CC_2007-2010_04.11.PNG)
1 |
A5D-53311-00-00 - PNEU More informationQuantity required : 2 |
||||||
|
2 |
A4A-53210-00-02 - JANTE ROUE AV. More informationQuantity required : 2 |
||||||
|
3 |
A1A-53322-00-00 - TIGE More informationQuantity required : 2 |
||||||
|
4 |
A1A-53268-00-00 - BOUCHON ECROU More informationQuantity required : 2 |
||||||
|
5 |
94061-10000-03 - ECROU More informationQuantity required : 8 |
||||||
|
6 |
A5A-55480-00-00 - MOYEU ROUE AV. More informationQuantity required : 2 |
||||||
|
7 |
A4A-55446-00-00 - COLLIER More informationQuantity required : 2 |
||||||
|
8 |
A4A-55456-00-00 - COLLIER More informationQuantity required : 2 |
||||||
|
9 |
91201-23035-70 - JOINT SPIE More informationQuantity required : 2 |
||||||
|
10 |
DOUILLE |
||||||
|
11 |
96120-06003-20 - DOUILLE More informationQuantity required : 2 |
||||||
|
12 |
A4A-54266-00-00 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
PIVOT |
||||||
|
14 |
A1A-54256-00-00 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
A4A-72144-00-01 - ARTICULATION DIRECTION More informationQuantity required : 1 |
||||||
|
16 |
A4A-72154-00-01 - ARTICULATION DIRECTION More informationQuantity required : 1 |
||||||
|
17 |
A4A-72185-00-01 - SUPPORT More informationQuantity required : 1 |
||||||
|
18 |
A4A-72195-00-01 - SUPPORT More informationQuantity required : 1 |
||||||
|
19 |
A5A-55480-00-00 - MOYEU ROUE AV. More informationQuantity required : 2 |
||||||
|
20 |
JEU PLAQUETTES FREINS |
||||||
|
21 |
A5A-55003-00-00 - DISQUE FREIN GAU. More informationQuantity required : 1 |
||||||
|
22 |
A5A-55004-00-00 - DISQUE FREIN DRO. More informationQuantity required : 1 |
||||||
|
23 |
A5A-55010-00-01 - ETRIER DE FREIN GAU. More informationQuantity required : 1 |
||||||
|
24 |
A5A-55020-00-01 - ETRIER DE FREIN DRO. More informationQuantity required : 1 |
||||||
|
25 |
BULLONE |
||||||
|
26 |
zULLONE |
||||||
|
27 |
PIVOT |
||||||
|
28 |
A1A-53266-00-00 - ECROU More informationQuantity required : 2 |
||||||
|
29 |
A4A-55446-00-00 - COLLIER More informationQuantity required : 2 |
||||||
|
30 |
A4A-55456-00-00 - COLLIER More informationQuantity required : 2 |
||||||
|
31 |
91201-23035-70 - JOINT SPIE More informationQuantity required : 2 |
||||||
|
32 |
DOUILLE |
||||||
|
34 |
91201-27042-70 - JOINT SPIE More informationQuantity required : 2 |
||||||
|
35 |
A5A-55037-00-00 - BULLONE More informationQuantity required : 6 |
