Vehicle Exploded View - APRILIA PEGASO 125 1991-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

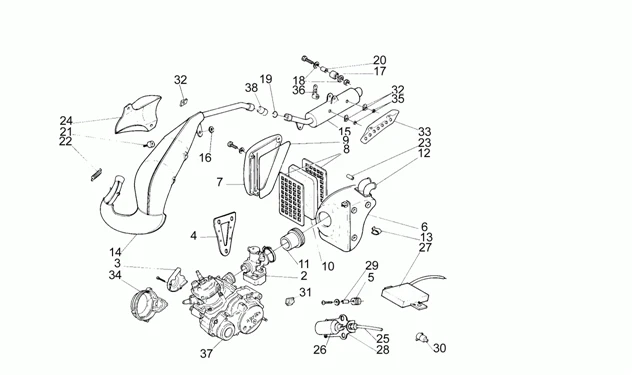

Chassis : 13 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/302/Pegaso_125_1991-1994_13.PNG)
2 |
CARBURATEUR VHSB 34 LD |
||||||
|
3 |
CARTER COUVRE PIGNON SDB |
||||||
|
3 |
CARTER COPRIPIGN=8131317 |
||||||
|
4 |
ATTACHE MOTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
5 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
6 |
CAISSE FILTRE |
||||||
|
7 |
Couvercle corps filtre; |
||||||
|
8 |
Gril. sup. fil-coup.; |
||||||
|
9 |
890513 - JOINT D.4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/2/img/71162.jpg)
10 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RX, SX 1995>1998, PEGASO 1991>1994 -AP8101851- More informationQuantity required : 1 |
||||||
|
11 |
Manchon carburateur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.jpg)
12 |
AP8120748 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 10 |
||||||
|
14 |
|
||||||
|
14 |
SILENCIEUX |
||||||
|
15 |
SILENCIEUX PEG125 (PL) |
||||||
|
15 |
SILENCIEUX CATALYTIQUE |
||||||
|
16 |
Rondelle |
||||||
|
17 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
18 |
AP8101284 - RONDELLE More informationQuantity required : 2 |
||||||
|
19 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
20 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/4/img/46724.jpg)
22 |
EXHAUST SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, AF1 -AP8121091- More informationQuantity required : 2 |
||||||
|
23 |
|
||||||
|
24 |
GRILLE RADIATEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/6/0/img/44260.jpg)
25 |
TRANSMISSION CABLE FOR EXHAUST VALVE "PIAGGIO GENUINE PART" APRILIA 125 RS, MX, SX, RX, TUONO, PEGASO, CLASSIC, AF1 -AP0297746- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/6/3/img/45863.jpg)
26 |
EXHAUST VALVE DEVICE "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, PEGASO, CLASSIC -AP8112567- More informationQuantity required : 1 |
||||||
|
27 |
AP8112612 - BO?TIER COMMANDE RAVE More informationQuantity required : 1 |
||||||
|
28 |
SUPPORT SOLENOID |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
29 |
AP8221036 - BAGUE 5,3X8X7,1 More informationQuantity required : 4 |
||||||
|
30 |
AP8112914 - CAPUCHON PROTECTION SOLE More informationQuantity required : 1 |
||||||
|
31 |
AP8120581 - SUPPORT GAINE More informationQuantity required : 1 |
||||||
|
32 |
AP8102041 - CLIP More informationQuantity required : 5 |
||||||
|
33 |
Protect. silencieux |
||||||
|
34 |
|
||||||
|
34 |
CARTER VOLANT GRIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
35 |
AP8221297 - RONDELLE ISOLANTE More informationQuantity required : 2 |
||||||
|
36 |
SUPPORT SILENCIEUX |
||||||
|
37 |
COUVERCLE POMPE A HUILE |
||||||
|
37 |
COUVERCLE POMPE MIX |
||||||
|
38 |
Durite pot-silencieux |
