Vehicle Exploded View - APRILIA PEGASO STRADA-TRAIL 650 IE 2005-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

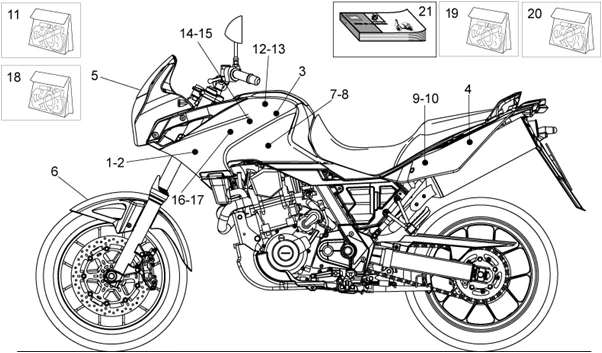

Chassis : 28.42 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/306/Pegaso_Strada-Trail_650_IE_2005-2009_28.42.PNG)
1 |
853312 - DECALCO More informationQuantity required : 1 |
||||||
|
1 |
858363 - DECALCO More informationQuantity required : 1 |
||||||
|
1 |
AP8166640 - DECALCO LEONE DX SERBATOIO More informationQuantity required : 1 |
||||||
|
1 |
AP8166779 - DECALCO More informationQuantity required : 1 |
||||||
|
2 |
853313 - DECALCO More informationQuantity required : 1 |
||||||
|
2 |
858364 - DECALCO More informationQuantity required : 1 |
||||||
|
2 |
AP8166641 - DECALCO LEONE SX SERBATOIO More informationQuantity required : 1 |
||||||
|
2 |
AP8166780 - DECALCO More informationQuantity required : 1 |
||||||
|
3 |
AP8166643 - DEC."APRILIA"DX-SX BIANCO SERB More informationQuantity required : 2 |
||||||
|
3 |
AP8166646 - DEC."APRILIA"DX-SX ROSSO SERB. More informationQuantity required : 2 |
||||||
|
4 |
AP8166642 - DEC."PEGASO STRADA"ROSSO COD. More informationQuantity required : 2 |
||||||
|
4 |
AP8166645 - DEC."PEGASO STRADA"NERO CODONE More informationQuantity required : 2 |
||||||
|
4 |
DECAL "PEGASO TRAIL" "PIAGGIO GENUINE PART" APRILIA 650 PEGASO -AP8166784- More informationQuantity required : 2 |
||||||
|
5 |
853318 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
5 |
854519 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
5 |
AP8166644 - DECALCO "APRILIA" CUPOLINO More informationQuantity required : 1 |
||||||
|
5 |
AP8166785 - DECALCO "APRILIA" CUPOLINO More informationQuantity required : 1 |
||||||
|
6 |
853413 - CALCA APRILIA RACING RS 50CC More informationQuantity required : 1 |
||||||
|
7 |
853314 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
7 |
AP8166782 - DECALCO LEONE INF SX SEBATOIO More informationQuantity required : 1 |
||||||
|
8 |
853315 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
8 |
AP8166783 - DECALCO "APRILIA" SEBATOIO More informationQuantity required : 1 |
||||||
|
9 |
853316 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
9 |
854505 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
9 |
854517 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
9 |
858355 - DECALCO More informationQuantity required : 1 |
||||||
|
9 |
858365 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
853317 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
10 |
854506 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
10 |
854518 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
10 |
858356 - DECALCO More informationQuantity required : 1 |
||||||
|
10 |
858366 - DECALCO More informationQuantity required : 1 |
||||||
|
11 |
AP8166478 - DECALCO SERIE TECNICA More informationQuantity required : 1 |
||||||
|
12 |
853306 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
854515 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
858357 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
854516 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
858358 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/7/3/1/img/39731_2.jpg)
13 |
853307 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
Décalco |
||||||
|
14 |
858351 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
858359 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
853309 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
858352 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
858360 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
858361 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
853310 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
858353 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
853311 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
858354 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
858362 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
890833 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
893529 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
893080 - DECALCO More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
|
21 |
|
||||||
|
21 |
|
