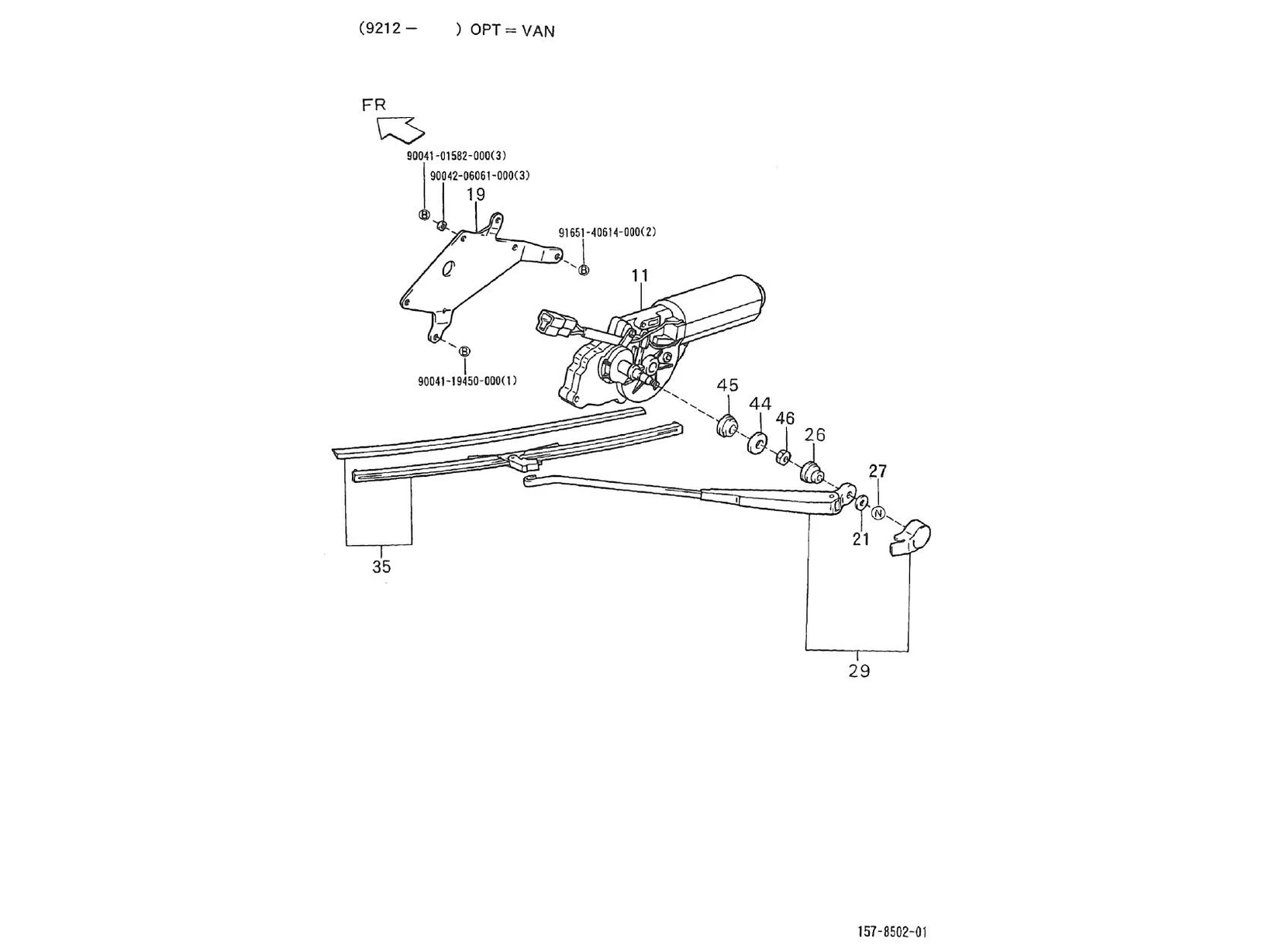

Circuit electrique : 05.140 ESSUIE-GLACE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_05.140.PNG)
11 |
8511087Z01000 - MOT.GLACE More informationQuantity required : 1 |
||||||
|
19 |
8523087Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
21 |
RONDELLE |
||||||
|
26 |
BOUCHON |
||||||
|
27 |
ECROU |
||||||
|
29 |
8519087Z02000 - BRAS More informationQuantity required : 1 |
||||||
|
35 |
8522087Z02000 - BALAI More informationQuantity required : 1 |
||||||
|
44 |
RONDELLE |
||||||
|
45 |
8518587Z01000 - JOINT More informationQuantity required : 1 |
||||||
|
46 |
ECROU |
||||||
|
47 |
BOULON |
||||||
|
48 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
49 |
CM287314 - BOULON More informationQuantity required : 2 |
||||||
|
50 |
BOULON |
