Vehicle Exploded View - DERBI QUAND 250 QUAD DXR 250cc 2004 2ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

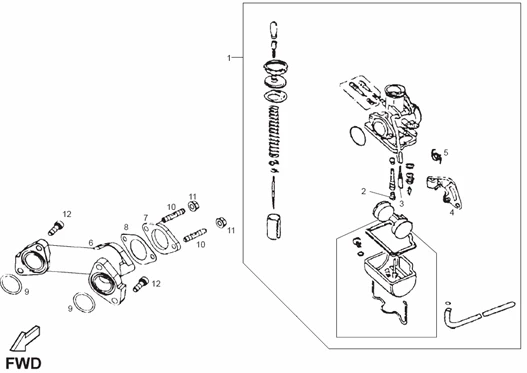

Tables : 34 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1102/QUAD_DXR_250cc_2004_2ª_edicion_34.png)
1 |
00Q25001025 - CTO. CARBURADOR More informationQuantity required : 1 |
||||||
|
2 |
00Q25001026 - SURTIDOR MAXIMA More informationQuantity required : 1 |
||||||
|
3 |
00Q25001027 - SURTIDOR MINIMA More informationQuantity required : 1 |
||||||
|
4 |
00Q25001028 - SOPORTE CABLE STARTER More informationQuantity required : 1 |
||||||
|
5 |
00Q25001029 - MUELLE More informationQuantity required : 1 |
||||||
|
6 |
00Q25001043 - COLECTOR More informationQuantity required : 1 |
||||||
|
7 |
00Q25001044 - PLATINA More informationQuantity required : 1 |
||||||
|
8 |
00Q25001045 - JUNTA More informationQuantity required : 1 |
||||||
|
9 |
00Q25001357 - JUNTA More informationQuantity required : 1 |
||||||
|
10 |
00Q25001431 - TORNILLO More informationQuantity required : 1 |
||||||
|
11 |
00Q25001455 - TUERCA More informationQuantity required : 1 |
||||||
|
12 |
00Q25001517 - TORNILLO More informationQuantity required : 1 |
