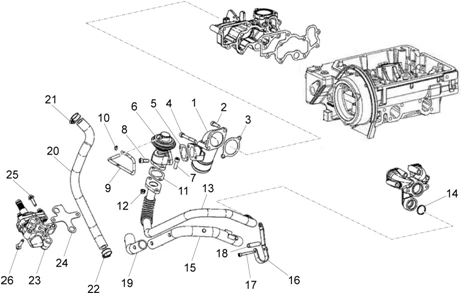

Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)
Moteur : 01.43 SOUPAPE EGR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_01.43.PNG)
1 |
850034 - FLASQUE More informationQuantity required : 1 |
||||||
|
2 |
VIS M8X1,25X3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/2/7/3/img/116273.jpg)
3 |
INTAKE MANIFOLD GASKET "PIAGGIO GENUINE PART" PIAGGIO PORTER DIESEL -493115 More informationQuantity required : 1 |
||||||
|
4 |
493269 - VIS More informationQuantity required : 1 |
||||||
|
5 |
493491 - JOINT CLAPET EGR1400 More informationQuantity required : 1 |
||||||
|
6 |
566514 - CLAPET EGR More informationQuantity required : 1 |
||||||
|
7 |
493276 - VIS M8X1,25X20 More informationQuantity required : 2 |
||||||
|
8 |
VIS 1400 M8X25 |
||||||
|
9 |
850077 - TUYAU More informationQuantity required : 1 |
||||||
|
10 |
COLLIER 1400 |
||||||
|
11 |
493491 - JOINT CLAPET EGR1400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/4/1/img/110141.jpg)
12 |
850270 - ECROU More informationQuantity required : 2 |
||||||
|
13 |
850079 - TUYAU More informationQuantity required : 1 |
||||||
|
14 |
493490 - SEGMENT TENUE 1400 More informationQuantity required : 1 |
||||||
|
15 |
850135 - PROTECTION More informationQuantity required : 1 |
||||||
|
16 |
850136 - ETRIER More informationQuantity required : 1 |
||||||
|
17 |
493265 - VIS M 6X1X40 More informationQuantity required : 1 |
||||||
|
18 |
ENTRETOISE 1400 |
||||||
|
19 |
850057 - PROTEZIONE More informationQuantity required : 1 |
||||||
|
20 |
850083 - CANALISAT. More informationQuantity required : 1 |
||||||
|
21 |
566789 - TUYAU 1200 More informationQuantity required : 1 |
||||||
|
22 |
566789 - TUYAU 1200 More informationQuantity required : 1 |
||||||
|
23 |
850025 - COUVERCLE More informationQuantity required : 1 |
||||||
|
24 |
850038 - JOINT More informationQuantity required : 1 |
||||||
|
25 |
493263 - VIS More informationQuantity required : 12 |
||||||
|
26 |
850137 - BOULON More informationQuantity required : 2 |
