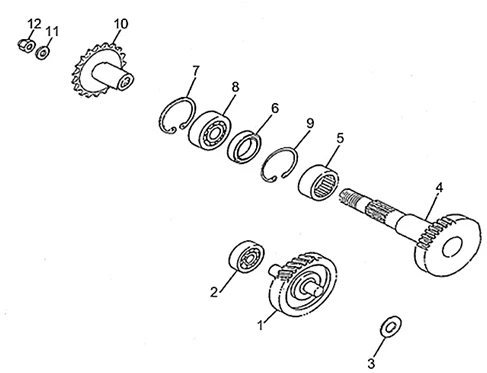

Moteur : 29.12 ARBRE DE TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/308/Quasar_100_2003_29.12.PNG)
1 |
Arbre de transmission |
||||||
|
1 |
Arbre de transmission |
||||||
|
2 |
Roulement |
||||||
|
3 |
Rondelle plate |
||||||
|
4 |
Arbre sortie |
||||||
|
4 |
Arbre sortie |
||||||
|
5 |
Roulement |
||||||
|
6 |
Joint spi |
||||||
|
7 |
Bague seeger |
||||||
|
8 |
Roulement |
||||||
|
9 |
Bague seeger |
||||||
|
10 |
AP8910161 - CORONA 19T/428 More informationQuantity required : 1 |
||||||
|
11 |
Rondelle plate |
||||||
|
12 |
DADO M14 |
