Vehicle Exploded View - APRILIA RALLY 50 Air 1995-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

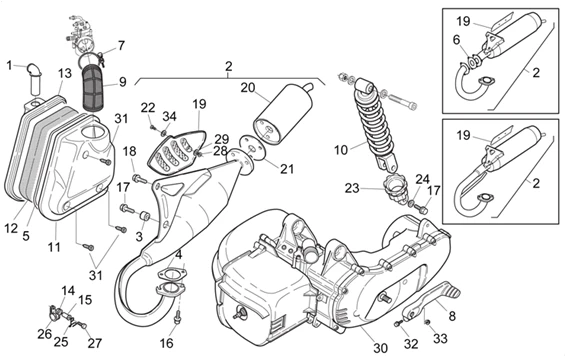

Moteur : 29.06 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/262/Rally_50_Air_1995-2004_29.06.PNG)
1 |
AP8220467 - MANCHON D'ASPIRATION; More informationQuantity required : 1 |
||||||
|
2 |
Pot d'échappement |
||||||
|
2 |
Pot catalytique |
||||||
|
2 |
Pot d'échappement |
||||||
|
2 |
AP8219405 - POT CATALYTIQUE More informationQuantity required : 1 |
||||||
|
2 |
AP8219479 - POT CATALYTIQUE More informationQuantity required : 1 |
||||||
|
2 |
AP8219586 - MARMITTA KAT More informationQuantity required : 1 |
||||||
|
2 |
AP8219587 - MARMITTA KAT E2 25 KM/H More informationQuantity required : 1 |
||||||
|
2 |
Pot catalytique |
||||||
|
2 |
AP8219607 - MARMITTA KAT E2 30 KM/H More informationQuantity required : 1 |
||||||
|
2 |
Pot d'échappement |
||||||
|
2 |
AP8219538 - POT ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
Pot catalytique - A |
||||||
|
2 |
POT ECHAPPEMENT CAT -NL- |
||||||
|
2 |
POT ECHAPPEMENT CAT -D- |
||||||
|
3 |
AP8220357 - SILENTBLOC POT VERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
4 |
AP8219212 - JOINT POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
4 |
AP8219596 - GUARNIZIONE MARMITTA More informationQuantity required : 1 |
||||||
|
5 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/3/5/img/56735.jpg)
6 |
AP8219321 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/9/1/img/55391.jpg)
7 |
AP8201799 - COLLIER DURITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/3/2/img/58032.jpg)
8 |
KICK STARTER "PIAGGIO GENUINE PART" APRILIA 50 SR, SONIC, RALLY, GULLIVER, SCARABEO -AP8232820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/4/img/56864.jpg)
9 |
AP8220364 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
|
10 |
AP8223057 - AMMORTIZZATORE -ANELLO GRIGIO- More informationQuantity required : 1 |
||||||
|
10 |
AP8203750 - AMORTISSEUR-BAGUE GRISE; More informationQuantity required : 1 |
||||||
|
10 |
Amortisseur-bague bleu |
||||||
|
11 |
AP8231549 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
11 |
AP8258806 - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/7/5/2/img/168752.JPG)
12 |
AP8201683 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
13 |
AP8231548 - CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/9/img/56869.jpg)
14 |
AP8220370 - CAOUTCHOUC CORPS FILTRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
15 |
AP8121725 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
16 |
AP8150521 - VITE TCEI M6X16 INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
17 |
AP8152289 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
18 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288- More informationQuantity required : 1 |
||||||
|
19 |
AP8239618 - PROTECTION SILENC.G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/5/1/5/img/58515.jpg)
19 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SR 1997>2000 -AP8248116 More informationQuantity required : 1 |
||||||
|
19 |
AP8219487 - PROTECTION POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
19 |
PROTECTION POT ECHAPP |
||||||
|
19 |
Protection pot aluminium; |
||||||
|
19 |
Grille prot. pot br.; |
||||||
|
19 |
AP8239206 - PROTECTION SILENC.G; More informationQuantity required : 1 |
||||||
|
19 |
AP8239257 - PROTECTION POT ALUMINIUM; More informationQuantity required : 1 |
||||||
|
20 |
AP8219236 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
21 |
AP8201574 - JOINT POT D'ECHAPPEMENT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
22 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 3 |
||||||
|
23 |
AP8201812 - COUVERCLE AMORTISSEUR, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
24 |
SHOULDER WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO 125 CC APRILIA/MOTO-GUZZI BREVA, NORGE, STELVIO -AP8121096 More informationQuantity required : 1 |
||||||
|
25 |
AP8221172 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
26 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
27 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
28 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.jpg)
29 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
29 |
AP8221297 - RONDELLE ISOLANTE More informationQuantity required : 3 |
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
|
30 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
31 |
AP8150425 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
32 |
AP8150165 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
32 |
AP8152282 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
33 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
34 |
AP8150179 - RONDELLE More informationQuantity required : 3 |
