Vehicle Exploded View - DERBI RAMBLA 300 Rambla 300 E3 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

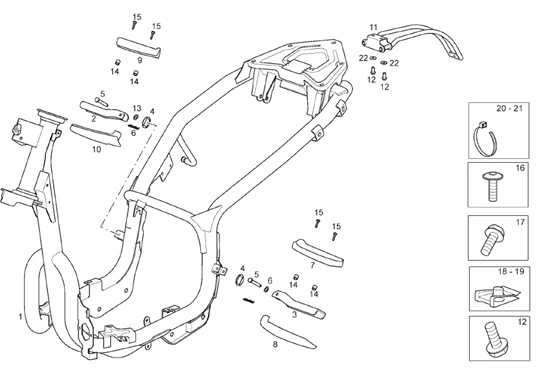

Châssis - parties plastiques - carrosseries : 1 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1110/Rambla_300_E3_2010-2011_(EMEA)_1.png)
1 |
85163R - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
AP8146883 - PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
3 |
AP8146884 - PEDANA PASSEGGERO SX More informationQuantity required : 1 |
||||||
|
4 |
AP8161023 - RONDELLA FORO QUADRO More informationQuantity required : 1 |
||||||
|
5 |
AP8135677 - PIVOT REPOSE-PIEDS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
6 |
PIN FOR FUEL FILLER CAP "PIAGGIO GENUINE PART" PIAGGIO GILERA 50 SMT, RCR 2018> -AP8201673 More informationQuantity required : 1 |
||||||
|
7 |
AP8178095 - GOMMA PEDANA PASSEGGERO SX More informationQuantity required : 1 |
||||||
|
8 |
AP8184263 - COUVERCLE More informationQuantity required : 1 |
||||||
|
9 |
AP8178094 - GOMMA PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
10 |
AP8184262 - COUVERCLE More informationQuantity required : 1 |
||||||
|
11 |
AP8154047 - SUPPORTO PORTATARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/6/img/71896.jpg)
13 |
AP8150502 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
14 |
AP8121795 - DOUILLE EN T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
15 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
16 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
17 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
19 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
20 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
21 |
AP8120657 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
22 |
AP8150018 - RONDELLE More informationQuantity required : 1 |
