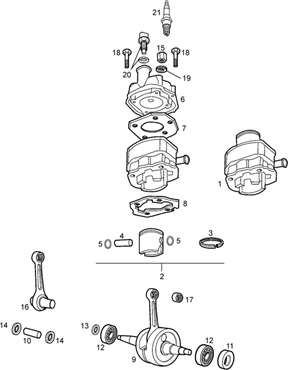

Moteur : T2 VILLEBREQUIN-CYLINDRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/664/RCR_50_1998-2005_T2.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/6/8/img/64968.jpg)
1 |
00H05014121 - CYLINDRE PISTON GILERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/0/img/69510.jpg)
2 |
PISTON "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX, RS -8472625001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/3/img/69513.jpg)
2 |
PISTON "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RS, SX, RX -8472625004 More informationQuantity required : 1 |
||||||
2 |
PISTON-COMPLET (B) |
||||||
|
2 |
PISTON-COMPLET (C) |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/4/img/69404.jpg)
3 |
PISTON RING- "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX/GILERA 50 SMT, RCR (POUR CYLIDRE ALUMINIUM) -847006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/8/img/69408.jpg)
4 |
PISTON PIN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/8/img/69478.jpg)
5 |
847178 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
6 |
865157 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/1/2/img/64712.jpg)
7 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2005 -00H02505021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/2/img/64702.jpg)
8 |
CYLINDER BASE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02500041- More informationQuantity required : 1 |
||||||
|
9 |
00H02508141 - ARBRE BIELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/1/img/63611.jpg)
10 |
CRANSHAFT PIN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU -00002025190 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/2/img/73542.jpg)
11 |
O'RING GASKET ON CRANKSHAFT (IGNITION SIDE) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003, GPR -GU90402037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/5/img/69475.jpg)
12 |
CRANKSHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>/APRILIA 50 SX, RX, RS 2006> -847172 More informationQuantity required : 1 |
||||||
|
13 |
O'RING GASKET ON CRANKSHAFT (IGNITION SIDE) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003, GPR -GU90402037 More informationQuantity required : 1 |
||||||
|
14 |
00002225220 - RONDELLE TETE DE BIELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/9/img/63669.jpg)
15 |
NUT - FOR HANDLEBAR FASTENING "PIAGGIO GENUINE PART" GILERA GSM, H@K, ZULU, SMT, RCR 1998>2005 -00008202730- More informationQuantity required : 1 |
||||||
|
16 |
BIELLE AVEC CAGE ET AXE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/3/img/69523.jpg)
17 |
PISTON CAGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847529 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
18 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/5/img/63635.jpg)
19 |
CYLINDER HEAD WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM 1998>2003 -00003125280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/6/img/64686.jpg)
20 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2004 -00H02302441- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/2/img/66532.jpg)
21 |
438076 - BOUGIE CHAMPION N3C More informationQuantity required : 1 |
