Vehicle Exploded View - GILERA RCR 50 2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

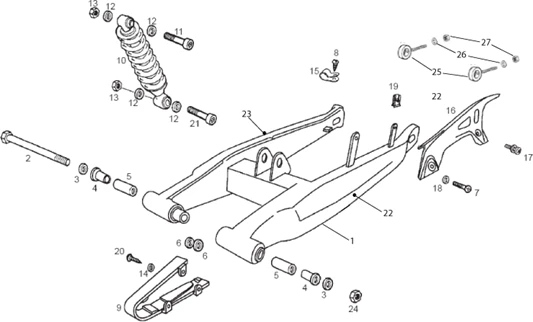

Chassis : 66.03 FOURCHE ARRIERE - AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/775/RCR_50_2011_66.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/1/img/72851.jpg)
1 |
REAR SUSPENSION ARM "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2011> -2B004345600WGB- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/4/img/64484.jpg)
2 |
REAR WHEEL AXLE/SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> APRILIA 50 SX, RX 2006> Ø 12 MM -00H013042025- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
3 |
709037 - RONDELLE More informationQuantity required : 0 |
||||||
|
3 |
709037 - RONDELLE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/0/img/63630.jpg)
4 |
SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002503230 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/7/img/64217.jpg)
5 |
SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00301401- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/9/img/63879.jpg)
6 |
WASHER FOR MOTOR SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01300192- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
7 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 0 |
||||||
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/2/0/img/64620.jpg)
9 |
CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT 2003>, RCR 2003>/APRILIA 50 SX-RX 2006> -00H01803331- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/8/1/img/70281.jpg)
10 |
8670020001 - AMORTISSEUR More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/3/0/img/64230.jpg)
11 |
00H00303892 - BOULON TETE HEX. M12 175X58 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/3/img/63633.jpg)
12 |
00003115422 - ROND. PLATE MECANISSE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/6/img/63716.jpg)
13 |
NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
14 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/4/img/70044.jpg)
15 |
864114 - BRIDA FIJ. CABLE D12.70 NEGRA More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/7/img/64557.jpg)
16 |
CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01508181- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
17 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
18 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
20 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/6/img/64216.jpg)
21 |
00H00300912 - VIS FIXATION AMORTISSEUR More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/4/2/img/70142.jpg)
22 |
8657130001 - CALCA BASCULANTE DLS IZ.09 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/4/1/img/70141.jpg)
23 |
DECAL- "DLS" ON SWINGING ARM "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -8657120001 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/8/img/63768.jpg)
24 |
NUT - INDESSERABLE M12X150 FOR REAR WHEEL/ENGINE SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00262120032 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/6/img/64486.jpg)
25 |
WHEEL TENSIONER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -00H01305171 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
26 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
27 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 0 |
